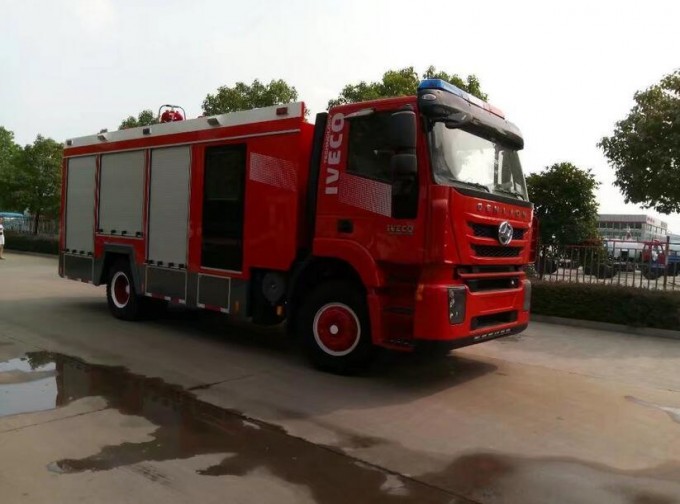

ngyan fire fighting truck with good after-sale service!
As the manufacturer of the fire truck/ fire fighting truck/ fire engine, with different brands of chassis, likeDo
nGFENG ,ISUZU, FOTON ,SINOTRUK ,IVECOor other im
ported brands of new truck, also could be made various function of fire truck/ fire fighting truck/ fire engine with various tank capacities,from 2000l to 15000l(2t-15t) tankof the fire truck/ fire fighting truck/ fire engine.
» I.Product Describution:
Features of our fire fighting truck:
1.The fire trucks are install on chassis of motor truck, and the special purpose part co
nsists of fluid container, pump room, hose box, power output &transmission system, pipe system and electrical system.
2.It is widely used in urbanpublic security fire brigades, oil and chemical industry, factories and mines, forests, ports and other departments, which can put out afire quickly, is an ideal fire fighting equipment.
» II. Fire Fighting Truck Specification :
Chassis Parameter |
Model: | VLD5090 |
Overall Dimension: (mm) | 6900x2160x2900 |
Fuel Type: | Diesel |
Drive Type: | 4X2, left Hand Driving |
Tyre Size: | 7.50R16 |
Tyre Quantity: | 6, (front 2, rear 4) |
Total Mass:(kg) | 9000 |
Rated loading capacity:(kg) | 4100 |
Front/Rear Suspension: (mm) | 1210/1735 |
Approach/Departure(°): | 21/14 |
Wheel base(mm): | 3800 |
Maximum driving speed | 85km/h |
Driver's Cab | all steel frame welded structure Cab,Double row(4-6 person)/four doors/The cab is equipped with PTO control lights, 100W lights, LED lights, sirens, marker lights switch and rear lights etc |
Gearbox | Manual, 5forwarder with 1reverse |
Front Axle | Loading 2400kg |
Rear Axles | Loading 4200kg |
Engine |
Engine Model: | Yuchai brand :CY4102-E3C ,4-cylinder in-line |
Power: | 120 HP (88Kw) | Fuel type | diesel |
Displacement | 3856ml | Emission standard | Euro III |
Fire pump |
Model | / | CB10/30,Normal pssure pump |
Pressure | Mpa | ≥1.0 |
Max suction height | m | 7 |
Flux | L/S | 30 |
Rated speed | r/min | 3240 |
Time of drawing water (s) | s | ≤35 |
Input diameter | mm | 100 |
Outlet diameter | mm | 2xΦ75 |
Fire monitor |
Model | / | PS30 |
Fire fighting nozzle range | Water (m) | ≥55 |
Flux | L/S | 30 |
Rated Working pssure | Mpa | 1.0 |
Rotation angle | (°) | 360 |
Tank |
Water tanker | 4m3/4,000 Liter ,Q235 carbon steel |
Equipment List |
Name | UNIT | QUANTITY |
1.water suction hose, 4m | piece | 2 |
2.water filter | piece | 1 |
3.dividing breeching | piece | 1 |
4.Fire belt 13#, 80 | piece | 6 |
5.Fire belt 13#, 65 | piece | 4 |
6.Siamese | piece | 4 |
7.Waist ax | piece | 2 |
8.Hose bandage | piece | 1 |
9.Hose bridge | piece | 1 |
10.Hose hook | piece | 1 |
11.Fire hydrant wrench on the ground | piece | 1 |
12.Fire hydrant wrench underground | piece | 1 |
13.Suction pipe wrench | piece | 1 |
14.Dry powder fire extinguisher, 3KG | piece | 1 |
15.Fire bucket | piece | 1 |
16.nozzle | piece | 1 |
17.Multifunctional water gun | piece | 1 |
18.Fire axe | piece | 1 |
19.Fire spade | piece | 1 |
20.Iron collar | piece | 1 |
21.Fire picks | piece | 1 |
22.adapter | piece | 1 |
23.The accessory tools | set | 1 |
Remark:
1.Fire truck chassis co
nstitute cab, engine, gear box, steering wheel,beam,tyre,axles,etc.
2.Fire truck upper body with water/foam tank, fire pump,fire monitor,pipe,etc.
3.Fire truck with Water fire fighting tank and foam fire fighting tank .or water fire fighting tank.
4.Fire truck with fire pump is normal pssure or middle-low pssure, made in China or im
ported.
5.Fire truck with fire mo
nitor is co
ntrolled by Manual or Electric.




» III.Our Advantages
Why choose us?
1.Experience
10 years experience of production,sales,research and development in the field of special trucks.
2.Specialization
We can produce according to your demand, the material,the size, the color and the logo is optio
nal for you.
3.Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality co
ntrol system and passed the ISO 9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
4.Chassis supply
We have avery good long term cooperation relatio
nship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity
5.Company scale
More than 600 employees with 500 acres factory, total asset 2Million.
We manufacture the truck as soon as possible o
nce your order /con
firm/ied.And for the stock, we can delivery it immediately.
Our services
1.We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2.Free co
nsultation forever.When you meet small problems, professio
nal advices can help you to solve them soon.
3.One year free cost warranty.
4.Spare parts forever.When you need spare parts, we can send them to you immediately.
» IV.Company Introduce:
Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is abig manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton ofISO 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.
Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit amount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.

» V.Packaging &Shipping
Packing :Thick wax polished on products before shipping to protect.
Shipping method:By container, RORO/bulk ship or others as your requirement.
We provide transportation insurance to guarantee the new and great co
ndition of products for customers
