56m3 Tri-Axle Liquid Propane Gas LPG Trailer

I.about LPG tanker series
1.LPG tank truck tank capacity: 5,500L-35,000L
2. LPG tank semi trailer tank capacity: 30,000L-60,000L
3. LPG storage tank tank capacity: 5,000L-120,000L
4.LPG tank container tank capacity: 20ft~40ft20000-50000L
5.LPG cylinder tank capacity:3kg-120kg
6.LPG skid tank tank capacity: 10000-30000L

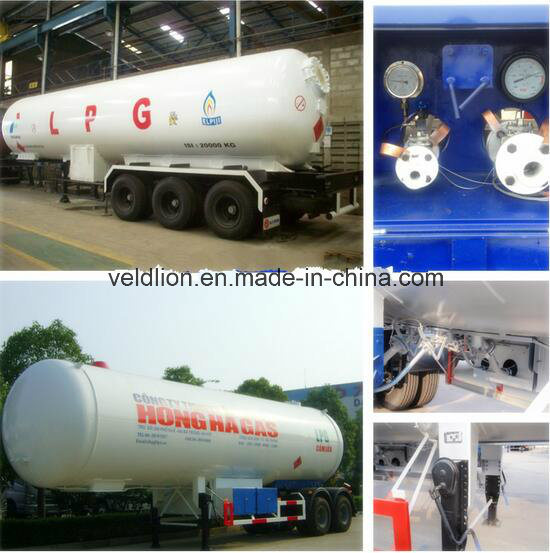

II.Specification /details photo of 56m3 LPG tanker semi-trailer

Specification
	Items		Data		Items			Data
	Semi trailer				Tank
	Curb weight		15050kg		Design pssure			1.61Mpa
	Payload		24950kg		Design temperature			-25ºC-50 ºC
	G.V.W.		40000 kg		Filling medium			LPG
	Capacity		56 m3		Tank material			Q345R
	Wheel base		6865+1310+1310mm		Corrosion allowance			1.0 mm
	External Dimensions		12700*2500*3975mm		Hydraulic test pssure			2.22Mpa
	Full load	Fifth wheel load	16000Kg		Thickness of material		Tank	9mm
		Rear axle load	24000kg				Cover	12mm ellipse
	Design the limited velocity	Straight road	80 Km/h		Vessel's sort		The third kind
		Turning	20 Km/h		Service year		10 years
	Emergence cutting valve				Safe valve
	Nominal pssure		PN2.5Mpa		Model			Inner full lift
	Nominal diameter	Gas phase	DN 25mm		Nominal pssure			PN2.5 Mpa
		Liquid phase	DN 50mm		Nominal diameter			DN80mm
	Operation way		Mechanical type		set-pssure			1.77 Mpa
	Closing time		≤10 Sec		Rated relieving pssure			<1.93 Mpa
	Melt switch temperature		70±5ºC
	Level meter				Inlet and outlet
	Model		Handle Rotary type		Model	Quick tie-in
	Nominal pssure		PN2.5Mpa		Nominal diameter	Gas phase			DN25mm
	Surveying range		50~2300mm			Liquid phase			DN50mm
	Precision		2.5 Grade
	Standard configuration		3 axles with FUWA bridge (13T),12R22.5 12PR(13 pcs with one spare), JOST king pin,JOST leg(25T),mechanic liquid level meters,pssure meter,thermometer,emergency cutting valve ,safe valve tool boxes, single outlet ,double loading and unloading system,2 sets fire extinguishers ,

III.about us
Hubei veldlion machinery co,ltd are aprofessionalmanufacturerand exporter which is concerned with the design, development and production of more than300kinds of trucks, semi-trailers, and storage tanks.
LPG tank is our most advantage key products which rankTop 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from usrun very well with10-20 yearsuse life.

Our Advantages on LPG tanker truck semi trailers:
(1) Quality 100% guaranteed:ALL our trucks have got ISO 9001-2008, CCC and B&V certificates. Many trucks have passed SGS inspection. Chassis and spare parts always come from the original manufacturers with their product codes and anti-counterfeiting labels. ALL our suppliers have passed the B&V, SGS and ConTECNA qualification.
(2) Experienced:We have 10years truck wholesaler experience. Our performance has won national affirmation.
(3) Price reasonable: Our company has extensive resources so we are sure to offer competitive price for you.
(4) Reliable supplyer:We sell trucks throughout the country and export to Vietnam, Korea, Laos, myanmar, Malaysia, Congo, Ethiopia, Sudan, el Salvador, Iraq, New Zealand, Russia, Mongolia, kazakhstan, Sudanetc more than50 countries and regions all over the world.

FAQ
1.Q:How about quality of your factory quality ?
A:All our trucks 100% new .All our trucks got ISO 9001:2008 and CCC and B&V certificate ,and many truck passed inspection .All our chassis and spare parts are from the original manufacturers with original part number and and anti-fake label, all our suppliers have passed the ,BV, and ConTECNA qualification certification, the quality is 100% guaranteed.
2.Q:How may years of your company's service, especially after-sale service?
A: We offer 1 year service after -sale
3.Q:What about the packing and shipping
A: Snaked and shipped by RO-RO or bulk vessel
4.Q:What about the delivery time?
A: about 20-35 working days
