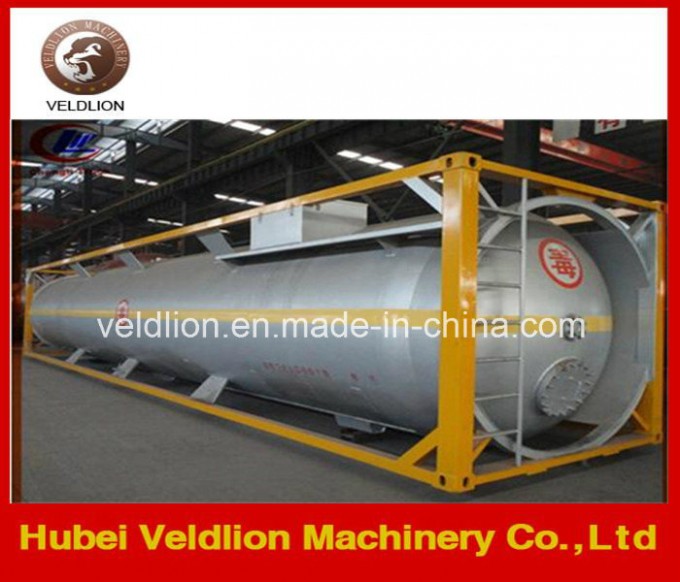

Factory Price for 20FT & 40FT LPG Storage Container for Nigeria

I.about LPG tanker series

1.LPG tank truck tank capacity: 5,500L-35,000L
2. LPG tank semi trailer tank capacity: 30,000L-60,000L
3. LPG storage tank tank capacity: 5,000L-120,000L
4.LPG tank container tank capacity: 20ft~40ft20000-50000L
5.LPG cylinder tank capacity:3kg-120kg
6.LPG skid tank tank capacity: 10000-30000L


II.Specification of LPG tanker

	Volume (cbm)	DN (mm)	Thickness (mm)		Quality(kg)		Overall Dimension(mm)
			Shell	Head	Tank	Filling
Filling Medium liquid amonia Pressure 2.05MPa Corrosion Allowance 2mm Medium Density520kg/m2	20	2100	16	16	6400	9880	6162x2132x2710
	25	2100	16	16	7760	12350	7762x2132x2710
	32	2400	16	16	8920	15808	7516x2432x3010
	50	2400	16	16	13100	24700	11516x2432x3010
	50	2800	20	20	14470	24700	8620x2840x3420
	80	2800	20	20	20980	39520	13520x2840x3420
	80	3200	22	22	21710	39520	10524x3244x3830
	100	2800	20	20	26010	49400	16740x2840x3420
	100	3200	22	22	26190	49400	13024x3244x3830
Filling Medium Dimethylether Pressure1.15MPa Corrosion Allowance 1.5mm Medium Density580kg/m2	50	2700	10	12	8620	27550	9174x2724x3310
	65	2700	10	12	10480	35815	11824x2724x3310
	80	2700	10	12	12280	44080	14454x2724x3310
	80	3200	12	12	13080	44080	10504x3224x3810
	100	3200	12	12	15560	55100	13004x3224x3810
	120	3400	12	14	17940	66120	13808x3424x4010
Material of tank and main pssure parts			Q345R/Q370R
Standard			GB150 TSG R0004-2009
Safety valve of selection fitting			Safety valve, column magnetic reversible level meter, pssure gauge, thermometer, cut-off valve

tem		unit	Parameter
Products name			LPG storage tanker
Products number			VLD-5
Filling medium			LPG(propane)
Overall dimensions(L*W*H)		mm	3070*1620*2210
Tank size (inner diameter*thickness*length)		mm	DN1600*10*3070
Volume		m3	5.6
Curb weight		Kg	2030
Designing pssure		Mpa	1.77
Working pssure		Mpa	≤1.6
Working temperature		°C	≤50
Hydraulic test pssure		Mpa	2.22
Air test pssure		Mpa	1.77
Material of tank and accessory		Q345R,16Mn,III
Implementation of standards		GB150 Steel Pressure Vessel and Pressure VesselSafety Technical Supervision Regulation
Optional safety accessories		Safety valve, magnetic flap, level gauge,pssure gauge, thermometer, globe valve,etc

III.about us
Hubei veldlion machinery co,ltd are aprofessional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks, semi-trailers, and storage tanks.
LPG tank is our most advantage key products which rank Top 5in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our Advantages on LPG tanker truck semi trailers:
(1) Quality 100% guaranteed:ALL our trucks have got ISO 9001-2008, CCC and B&V certificates. Many truckshave passed SGS inspection. Chassis and spare parts always come from the original manufacturers with their product codes and anti-counterfeiting labels. ALL our suppliers have passed the B&V, SGS and ConTECNA qualification.
(2) Experienced:We have 10years truck wholesaler experience. Our performance has won national affirmation.
(3) Price reasonable: Our company has extensive resources so we are sure to offer competitive price for you.
(4) Reliable supplyer:We sell trucks throughout the country and export to Vietnam, Korea, Laos, myanmar, Malaysia, Congo, Ethiopia, Sudan, el Salvador, Iraq, New Zealand, Russia, Mongolia, kazakhstan, Sudan etc more than 50 countries and regions all over the world.

FAQ
1.Q:How about quality of your factory quality ?
A:All our trucks 100% new .All our trucks got ISO 9001:2008 and CCC and B&V certificate ,and many truck passedinspection .All our chassis and spare parts are from the original manufacturers with original part number and and anti-fake label, all our suppliers have passed the ,BV, and ConTECNA qualification certification, the quality is 100% guaranteed.
2.Q:How may years of your company's service, especially after-sale service?
A: We offer 1year service after -sale
3.Q:What about the packing and shipping
A:Snaked and shipped by RO-RO or bulk vessel
4.Q:What about the delivery time?
A:about 20-35 working days
