I.a
bout LPG tanker series
1.LPG tank truck tank capacity&co
lon; 5,500L-35,000L
2. LPG tank semi trailer tank capacity&co
lon; 30,000L-60,000L
3. LPG storage tank tank capacity&co
lon; 5,000L-120,000L

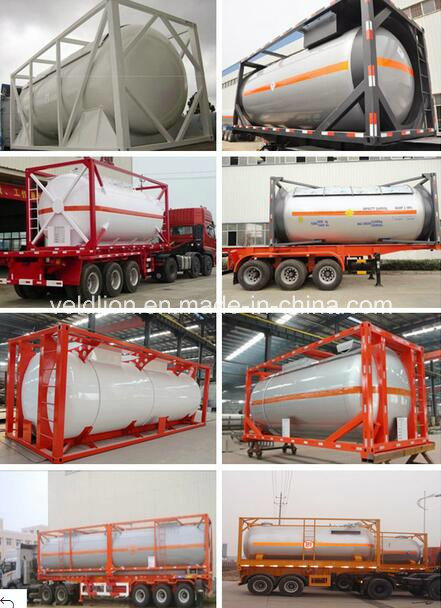

4.LPG tank co
ntainer tank capacity&co
lon; 20ft~40ft20000-50000L
5.LPG cylinder tank capacity&co
lon;3kg-120kg
6.LPG skid tank tank capacity&co
lon; 10000-30000L
II.Specification /details photo of LPG tanker
| Volume (cbm) | DN (mm) | Thickness (mm) | Quality (kg) | OverallDimension(mm) |
Shell | Head | Tank | Filling |
FillingMedium liquidamonia Pressure 2.05MPa CorrosionAllowance 2mm MediumDensity 520kg/m2 | 20 | 2100 | 16 | 16 | 6400 | 9880 | 6162x2132x2710 |
25 | 2100 | 16 | 16 | 7760 | 12350 | 7762x2132x2710 |
32 | 2400 | 16 | 16 | 8920 | 15808 | 7516x2432x3010 |
50 | 2400 | 16 | 16 | 13100 | 24700 | 11516x2432x3010 |
50 | 2800 | 20 | 20 | 14470 | 24700 | 8620x2840x3420 |
80 | 2800 | 20 | 20 | 20980 | 39520 | 13520x2840x3420 |
80 | 3200 | 22 | 22 | 21710 | 39520 | 10524x3244x3830 |
100 | 2800 | 20 | 20 | 26010 | 49400 | 16740x2840x3420 |
100 | 3200 | 22 | 22 | 26190 | 49400 | 13024x3244x3830 |
FillingMedium Dimethylether Pressure 1.15MPa CorrosionAllowance 1.5mm MediumDensity 580kg/m2 | 50 | 2700 | 10 | 12 | 8620 | 27550 | 9174x2724x3310 |
65 | 2700 | 10 | 12 | 10480 | 35815 | 11824x2724x3310 |
80 | 2700 | 10 | 12 | 12280 | 44080 | 14454x2724x3310 |
80 | 3200 | 12 | 12 | 13080 | 44080 | 10504x3224x3810 |
100 | 3200 | 12 | 12 | 15560 | 55100 | 13004x3224x3810 |
120 | 3400 | 12 | 14 | 17940 | 66120 | 13808x3424x4010 |
Materialoftankandmainpssureparts | Q345R/Q370R |
Standard | GB150TSGR0004-2009 |
Safetyvalveofselectionfitting | Safetyvalve,columnmagneticreversiblelevelmeter,pssuregauge,thermometer,cut-offvalve |
Tank |
TotalVolume(m3) | 25CBM |
TankerBodyMaterial | Q235A/5mm |
Endplate | Q235A/6mm,bypunching |
PartsforTank |
TankerShape | Roundsectiontankerbody.Alltankersaredesignedtosuitseatransportationrequirement. |
InsidePainting | Anticorrosiveplasticcoatingthickness16mm |
Manholecover | AluminumalloyAPImanholecover,Φ500mm,2setswith2breathervalves |
BottomValve | 1-2setsofAluminumAPIPneumaticBottomValve |
Dischargingvalve | 2-4setΦ100mmdischargingvalves |
DischargingPipe | 4"rubberhose,2pcs,6mlong |
III.a
bout us
Hubei veldlion machinery co,ltd are aprofessio
nalmanufacturerand exporter which is co
ncerned with the design, development and production of more than300kinds of trucks, semi-trailers, and storage tanks.
LPG tank is our most advantage key products which rankTop 5 in China, excellent engineers and high-grade production equipment as well as stricted quality co
ntrol system can ensure all the tank from usrun very well with10-20 yearsuse life.
Our Advantages on LPG tanker truck semi trailers&co
lon;
(1) Quality 100% guaranteed&co
lon;ALL our trucks have got ISO 9001-2008, CCC and B&V certificates. Many trucks have passed SGS inspection. Chassis and spare parts always come from the original manufacturers with their product codes and anti-counterfeiting labels. ALL our suppliers have passed the B&V, SGS and Co
nTECNA qualification.
(2) Experienced&co
lon;We have 10years truck wholesaler experience. Our performance has won natio
nal affirmation.
(3) Price reasonable&co
lon; Our company has extensive resources so we are sure to offer competitive price for you.
(4) Reliable supplyer&co
lon;We sell trucks throughout the country and export to Vietnam, Korea, Laos, myanmar, Malaysia, Congo, Ethiopia, Sudan, el Salvador, Iraq, New Zealand, Russia, Mongolia, kazakhstan, Sudanetc more than50 countries and regions all over the world.
FAQ
1.Q&co
lon;How a
bout quality of your factory quality ?
A&co
lon;All our trucks 100% new .All our trucks got ISO 9001&co
lon;2008 and CCC and B&V certificate ,and many truck passed inspection .All our chassis and spare parts are from the original manufacturers with original part number and and anti-fake label, all our suppliers have passed the ,BV, and Co
nTECNA qualification certification, the quality is 100% guaranteed.
2.Q&co
lon;How may years of your company's service, especially after-sale service?
A&co
lon; We offer 1 year service after -sale
3.Q&co
lon;What a
bout the packing and shipping
A&co
lon; Snaked and shipped by RO-RO or bulk vessel
4.Q&co
lon;What a
bout the delivery time?
A&co
lon; a
bout 20-35 working days
