Top 1 Fire Fighting Equipment Manufacturer XCMG Official 72m Water Tower Fire Truck Jp72 for Sale

Top 1 Fire Fighting Equipment Manufacturer XCMG Official 72m Water Tower Fire Truck JP72 for sale

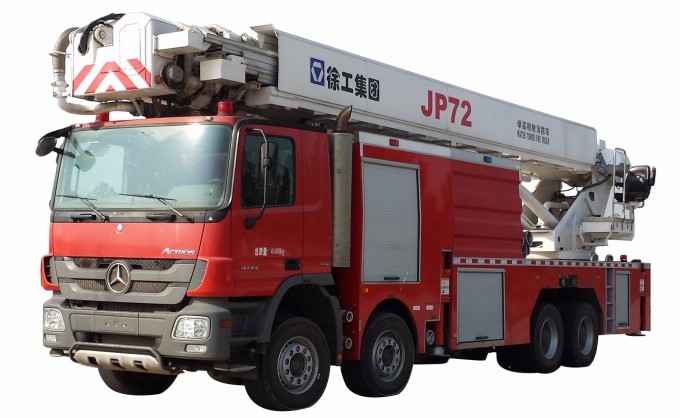

JP72water tower fire truck, combining water tank truck, foam truck and high-spraying truck in one, is furnished with Germany imported Benz Actros 4144 / 8 x 4 chassis conforming with China IV emission standard, US Darley PSP1500 fire pump and AKRON 3578 + 5177 / 3626 fire monitor. It has maximum operating height of 72meters, maximum operating amplitude of 26 meters, a load of 5tons fire fighting fluid and ability of 360°continuous rotation; all motion mechanism are driven by hydraulic system and controlled by PLC; the truck has characteristics of simple and convenient operation, flexible action, safety and reliability, strong practicability and so on; it is provided with complete safety protection devices, 100 - meter wireless remote control, fire real-time monitoring systems and other advanced functions; it is excellent equipment for fire control of high-rise buildings in cities and for protecting the safety of people's lives and property.
[Advantage &Highlight]
1. Original Benz 4144 chassis, engine power 320 KW, emission meeting China IV standard, luxury configuration, comfortable operation, Benz Telligent® intelligent shift, braking, maintenance system, anti-lock braking system ( ABS ) and Acceleration Skid Control System(ASR).
2. Perfect Function of Fire Fighting System
1) Advanced system configuration: US Darley PSP1500 fire pump and AKRON 3578/ 5177 / 3626 fire monitor are adopted. The pump is driven by full power take-off device, with reliable performance and can provides water in large flow and high pssure to put out the fire in time and effectively.
2) The truck-mounted stainless steel fire-fighting tank has an effective liquid load of 5tons, including 3.5tons of water and 1.5 tons of foam liquid. The truck is complete with US Darley FSB120-C full-automatic foam proportion mixing system with mixing ratio 0.5 - 10 %, which can be used for fire fighting and rescue of Class A and B; in addition, it is equipped with manual foam proportional mixer as backup in case of any failure of the automatic proportional mixer; external sucking foam port is provided to supplement foam from outside in case of running out of original foam, ensuring the continuity of fire fighting operations.

3) The fire control system of the truck adopts electric and pneumatic control and is easily operated. The main fire monitor can be controlled in a wireless remote way at 100 meters away.
3. The truck adopts a distributing controls based on PLC and can bus, and redundancy controls, i.e. double signal sensor for monitoring, double bus for transmission, double controller for processing and double valve control output. Large-screen LCD display as man-machine interaction interface provides rich information and fault diagnosis, realizing logic control and electric proportion control by combining conventional electric system. The system has the characteristics of high integration, good reliability, good repeatability, convenient setting and so on, and can conveniently and reliably realize various safety protection functions.
4. For the hydraulic system, advanced load-sensitive pump and load-sensitive valve form a high-performance closed-core control system with low starting pssure, stable speed, energy saving and high efficiency.
5. Advanced electro-hydraulic proportional control technology allows stable operation and good inching. The landing leg has two leveling modes, manual and automatic, and the function of one-key taking-back.
6. The automatic lubrication system controlled by computer realizes automatic lubrication and easy maintenance.
7. Fir fire field real-time monitoring system, the truck is provided with Netherland ORLACO high resolution video surveillance system which has wide adjustable range for clear imaging and strong anti-interference. This system can help firemen to observe the fire in real time and take fast and effective measures to put out the fire.
8. Complete and reliable safety protection system covers 22 items of protection devices.

Technical Data

Main performance data
Overall size : (L x W x H)	11820×2500×4000mm
Full-load weight	41750kg
Maximum truck speed	≥90km/h(electronic speed limit)
Minimum turning diameter	≤25m
Approach angle	≥23°
Departure angle	≥9°
Maximumgradeability	≥25%
Outrigger span	Outrigger longitudinal span		6750mm
	Outrigger transversal span		5430mm
Maximum operating height	72m
Maximum operating radius	26m
Jib rack luffing angle	No.1 jib rack0°-86° No.1 and No. 2 jib jack0°-162°
Turning range	360° full circle turning
Leg deployment time	≤40s
Time required for jib rack rising to rated height and then turning 90°	≤260s
Maximum turning speed	0.5~1.5r/min
Fire pump	Rated flow	50 L/s
	Rated pssure	1.5MPa
Fire monitor	Model	3578+3626		3578+3626
	Rated flow	48 L/s		48 L/s
	Rated pssure	0.8MPa		0.8MPa
	Shoot range	65m(water)		60m(foam)
