Hot Sale of 40FT LPG Tanker Container on Sale

I.about LPG tanker series
1.LPG tank truck tank capacity: 5,500L-35,000L
2. LPG tank semi trailer tank capacity: 30,000L-60,000L
3. LPG storage tank tank capacity: 5,000L-120,000L
4.LPG tank container tank capacity: 20ft~40ft20000-50000L
5.LPG cylinder tank capacity:3kg-120kg
6.LPG skid tank tank capacity: 10000-30000L

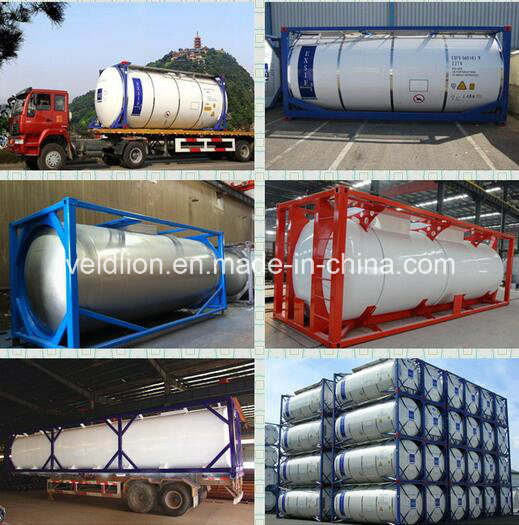

II.Specification /details photo of 40FT LPG tanker Container

LPG storage tank Description
Vehicle Model	VLD-40FT	Chassis Model	CLG2400-50
GVW (kg)	40000	Curb weight (kg)	11140
Loading capacity (L)	Approx 20,000	Tanker material	Q345R
Tanker Description
Tanker volume	50000 Liters	Tanker Curb mass	11140 kg
Tanker material	Q345R	Design pssure	1.77Mpa
Tanker thickness	12mm	Design temperature	50
Water test pssure	2.22Mpa	Sealed test pssure	1.77Mpa
Tanker vechicle size	11508*2428*3018 mm	Filling factor	0.42
Tanker DN	2400mm	Corrosion allowance	2
Up-parts Description
Tank Dimensions(mm)	Approx 11508*2428*3018 mm
Tanker has following certificate
1	Material test (Q345 no scratch, Pressure values
2	Hydrostatic test certificate
3	Ultra sonic test certificate
4	Heat Treatment certificate
5	Material list and certificate of pssure retaining part
importance	§Tank, piping: Test and welding certificates from authorised testing bureau, execution drawing with all dimensions, calculation note of the tank according to code
	§X ray test for the pipes 100%
	§Written declaration that the tank is placed on the chassis according to the pscriptions of the chassis furniture
	§Calibration certificate of the LPG tank
	§All documents for tank, cabin (Manuals, certificates etc.)

Product name		Filling weight(kg)	Overall dimension(mm)	Tank weight(kg)	Remark
Liquefied petroleum gas (LPG) storage tank	12 m3 LPG storage tank	4840	6270*1620*2255	3298	safety attachment:safety value ,liquid level gauge, pssure gauge, thermometer, emergency shut-off valve, and so on
	25 m3 LPG storage tank	10080	7594*2124*2700	5900
	32 m3 LPG storage tank	12902	7508*2428*3010	7520
	50 m3 LPG storage tank	20160	11657*2428*3028	10760
	80 m3 LPG storage tank	32256	11866*3036*3610	17900
	100 m3 LPG storage tank	40320	13020*3240*3900	22950
Liquid ammonia storage tank	10 m3 storage tank	5094	5724*1624*2305	3280
	20 m3 storage tank	10188	6791*2032*2610	6295
	32 m3 storage tank	16301	8908*2236*2810	9808
	50 m3 storage tank	25470	11657*2432*3028	12200
	80 m3 storage tank	40750	11870*3040*3610	19725
	100 m3 storage tank	50940	13024*3244*3900	25000

III.about us
Hubei veldlion machinery co,ltd are aprofessionalmanufacturerand exporter which is concerned with the design, development and production of more than300kinds of trucks, semi-trailers, and storage tanks.
LPG tank is our most advantage key products which rankTop 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from usrun very well with10-20 yearsuse life.

Our Advantages on LPG tanker truck semi trailers:
(1) Quality 100% guaranteed:ALL our trucks have got ISO 9001-2008, CCC and B&V certificates. Many trucks have passed SGS inspection. Chassis and spare parts always come from the original manufacturers with their product codes and anti-counterfeiting labels. ALL our suppliers have passed the B&V, SGS and ConTECNA qualification.
(2) Experienced:We have 10years truck wholesaler experience. Our performance has won national affirmation.
(3) Price reasonable: Our company has extensive resources so we are sure to offer competitive price for you.
(4) Reliable supplyer:We sell trucks throughout the country and export to Vietnam, Korea, Laos, myanmar, Malaysia, Congo, Ethiopia, Sudan, el Salvador, Iraq, New Zealand, Russia, Mongolia, kazakhstan, Sudanetc more than50 countries and regions all over the world.

FAQ
1.Q:How about quality of your factory quality ?
A:All our trucks 100% new .All our trucks got ISO 9001:2008 and CCC and B&V certificate ,and many truck passed inspection .All our chassis and spare parts are from the original manufacturers with original part number and and anti-fake label, all our suppliers have passed the ,BV, and ConTECNA qualification certification, the quality is 100% guaranteed.
2.Q:How may years of your company's service, especially after-sale service?
A: We offer 1 year service after -sale
3.Q:What about the packing and shipping
A: Snaked and shipped by RO-RO or bulk vessel
4.Q:What about the delivery time?
A: about 20-35 working days
