| Product Specifications |
| Model Number | SKW9406CLXY |
| Rated Load | 60000 kg |
| Tare Weight | 7000 kg |
| Wheel base | 6460+1310+1310, 5960+1310+1310 (mm) |
| TyreSpecifications | 1100R20-18/12R22.5-18 |
| No. Of the Tyres | 12 |
| Axle Brand | FUWA (BPW optional) |
| No. Of the Axles | 3 |
| Axle-load | 24000 kg |
| King Pin | 50#/90# |
| Landing Leg | 28ton |
| Pieces of leaf-spring | 10 (8) |
| Suspension | Independent stamping steel rigid suspension ( air suspension) |
| Departure Angle | 15 |
| Front/Rear Overhang | 2650 mm |
| Outside Dimensions (LxWxH) | 13000,12500x2500X 3950,3750,3550,3350 (mm) |
| Interior Dimensions (LxWxH) | 12850,12350x2350X 2400,2200,2000,1800 (mm) |
| Material of the Main Beam | Q345B manganese plates, automatic submerged arc welded |
| Brake System | Dual line braking system/ABS |
| Brake Air Chamber | Six double chamber |
| Electrical | 24V 7 ways(7 wire harness) |
| Usage | Suitable for the agricultural, sideline products and other light products' transportation. The design is convenient for products' unloading, and it's not only satisfy the rated load also reduce the burden of the compartments. |

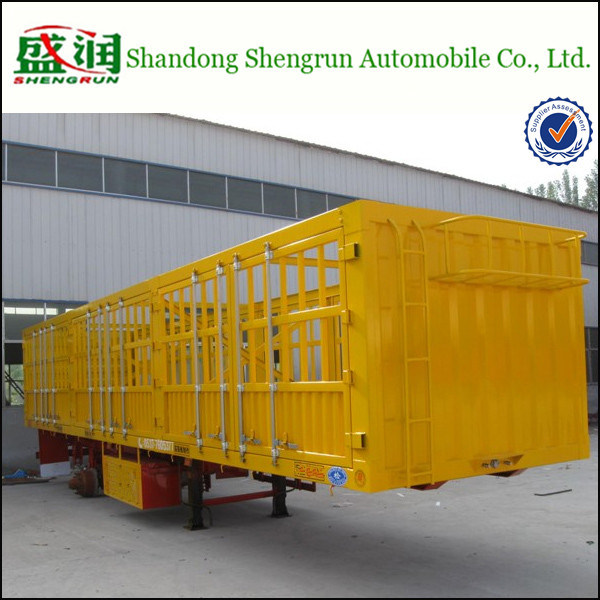

Other Descriptions | The cargo's carring part of the stake truck is store house bar style designed, the beam wears through the longitudinal beam which is welded as a space frame structure, making the frame strength, stiffness, flexibility an equilibrium, a strong carrying capacity without permanent deformation. |
| Other Specifications | The max height of the rear guard from ground is 550mm, and the cross section is 140mmX55mm. |
.
Top 10 FAQ &co
lon;
1.Areyoumanufacture?
Yes.WeareoneofleadingmanufacturersforKindsofpneumatictorque
wrenchwithmanynewproductionline.
2.What'syourguarantee?
Themaincomponentsofthewarrantyperiod&co
lon;
ITEMNAME | WARRANTY | ITEMNAME | WARRANTY |
| MAINframe | frame | 1YEAR | RUNNINGGEAR | AXLE | 6MONTHS |
| SUSPENSION | 6MONTHS | AXLEBEARING | 3MONTHS |
| KINGPIN | 1YEAR | WHEELHUB | 3MONTHS |
| BALANCEARM | 3MONTHS | TIRE | 6MONTHS |
| ITEMNAME | WARRANTY | ITEMNAME | WARRANTY |
| BRAKINGDEVICE | BRAKEDRUM | 3MONTHS | SUPPORTDEVICE | LANDINGGEAR | 6MONTHS |
| BRKECHAMBER | 3MONTHS | SPAREWHEELCARRIER | 6MONTHS |
| AIRRESERVOIR | 6MONTHS |
| ITEMNAME | WARRANTY |
| OTHERS | LEAFSPRING | 3MONTHS |
| BRAKECHAMBERDIAPHRAGM | 3MONTHS |
| EMERGENCYRELAYVALVE | 3MONTHS |
| BRAKESHOE | 3MONTHS |
| RELAYVALVE | 3MONTHS |
3.IsOEMavailable?
Yes,OEMisavailable.Wecanproduceourtraileraccordingtoyourrequirements.
Andwecanalsoputyourbrandonthetrailer.
4.Whatbenefitswillyoubring?
Yourclientsatisfiedonthequality.
Yourclientcontinuedorders.
Yourcangetgoodreputationfromyourmarketandobtainmoreorders.
5.Technicalguidanceofferedornot?
Wecouldoffertheuseandotheraspectsoftechnicalguidanceaccordingtotherequestofthecustomer.
6.CanIhavesamplesofthistypeoftrailertotestthequality?
Yes,youcanbuyanysamplestotestthequality,ourMOQis1set.
7.What'sthedeliverytimeandcanyoulowertheprice?
Itdependsonyourorder.Thedeliverytimeis15workdaysafterwereceivedyourppayment.Ifyouhaveplaceanorderoflargequantities,then,ofcourse,thepricecanbelowered.
8.CanIcustomizethepaintingandthelogo?
Yes,weoffercustomizedlogoforanytype.
9.What'sthepaymentmethod?
TT30%asDeposit,BalanceBeforeshipmentbyTTorL/Catsight.
10.Howtocontactus?
Ifyouhaveanyinterestsinourproducts,pleasefeelfreetoContactus
.
