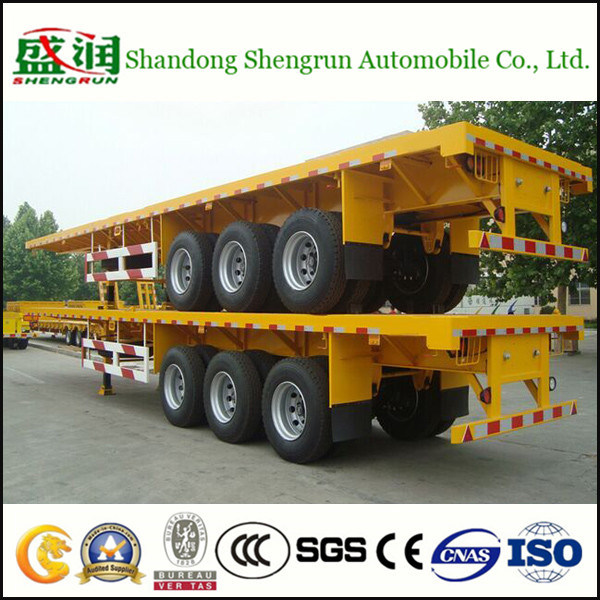

Shengrun 12.4m Three Axle Flatbed Semi Trailer/truck Trailer/ Container Trailer
Flatbed semi trailers
It consists of just a load floor and removable side rails and a bulkhead in front to protect the tractor in the event of a load shift. It can haul almost anything that can be stacked o and strapped down.
Cargo semi trailers are without fence and widely used in modern society. This series is particularly suitable for medium and long distance transportation of cargo.
1. Truck body adopts high strength international steel.
Vehicle tare weight is lighter, while ensuring its ability to resist distortion, to be astigmatic, to anti-dump, carrying capacity for different kinds of road.
2. Chassis of this series is beam-passing structure and longitudinal beam adopts flat type or gooseneck type. Web plate height is from 400mm to550mm, manganese plate jointing, longitudinal beam adopts automatic submerged welding, and chassis adopt shot blast, cross beam get through the longitudinal beam and welding as a whole
Suspension is made of tandem leaf spring and suspension bearing. Reasonable structure, strong rigidity and intensity, used for bearing load and cushion the blow.
Specifications | ||
Manufacturer | Shandong Shengrun Automoblie Co., Ltd | |
Model Nunber | SKW9352TJZG/SKW9351TJZG/SKW9401TJZ/SKW9402TJZG/SKW9404TJZG/SKW9405TJZG/SKW9406TJZG/SKW9401P | |
Tare Weight | about5.9T | |
Dimension | 12500mm*2500mm*1575mm | |
Loading Capacity | 45T | |
Axle | 13 T/16T,FUWA/BPW/Huajing Brand | |
Rim | 9.00-22.5 12pieces | |
Tire | 12.00R22.5/315 80R22.5 12pieces | |
Suspension | Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand) | |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer (especial for exporting market ) | |
King pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type | |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) | |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. | |
Side beam | 16mm channel steel (Material is Q235steel). | |
Bottom platform | 3mm diamond steel plate | |
Brake chamber | WABCORE6relayvalve;T30/30+T30Springbrakechamber;Two pieces of 45Lairtanks | |
ABS | Optional | |
Twist Locks | Four,Eight or Twelve pieces (Lifting type or Twist screw type) | |
Valve | WABCO valve (especial for exporting market ) | |
Light | LED light (especial for exporting market ) | |
Voltage | 24V | |
Receptacle | 7 ways (7 wire harness) | |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. | |
