Specifications:
Manufacturer | Shandong Shengrun Automoblie Co., Ltd | |
Model Nunber | SKW9406/SKW9407/SKW9404/SKW9405/SKW9402 | |

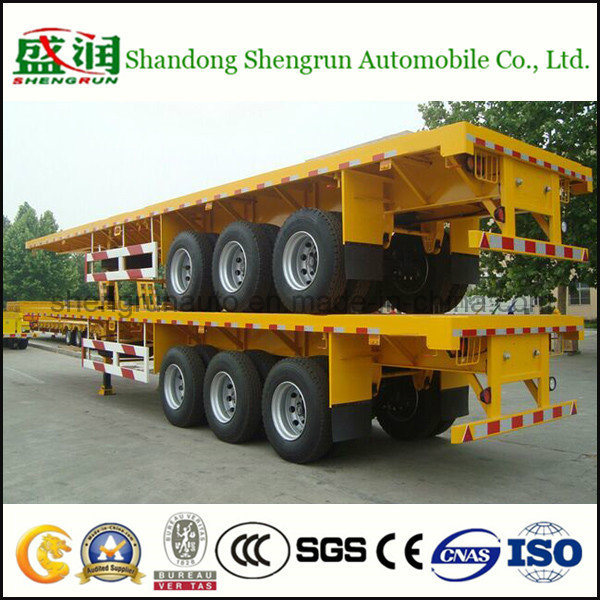

Product type | flatbed semi trailer | |
Outside dimension | Length:12500mm-13000mmwidth:2500mm | |
Tare weight | about 6.5T | |
Wheelbase | 6560mm+1310mm+1310mm | |
Loading capacity | 30T-40T | |
Axle | 13T/16T,FUWA/BPW/HUAJING Brand | |
ABS system | Optional | |
Front/rear | -/2420 | |
Twist locks | Four,Eight,Twelve pieces(Lifting type or Twist screw type), optional | |
Suspension | Mechanical suspension(Germany Type or America Type) or Air suspension(China brand or BPW brand) | |
Spring leaf | 90(W)mm *13(Thickness)mm*10Layer, optional | |
Tires | 12 Pieces Triangle Brand | |
Rim | 9.00×22.5 China brand 12pieces | |
King pin | JOST 2.00 or 3.5,Welding type | |
Support legs | JOST brand D200T or China brand 28tons( Double speed) | |
The material of main beam | The height of the beam is500mm,upper plate is 14 mm,down plate is 16mm,middle plate is 8 mm,Material is Q345B steel | |
Floor plate | 3mm or can be optional | |
Brake Chamber | WABCORE6relayvalve;T30/30+T30Springbrakechamber(TKLbrand);Two pieces of 45Lairtanks Or China brand | |
Electrical System | 24V,7 wire harness | |
Tool box | One piece or according to the requirement of the buyer | |
Painting | Compete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint | |
Reflective warning signage | Manufacturer: Changzhou Hua R Sheng Reflective Material Co., Ltd. Brand:TonGMING Product Type:TM1200-1 | |
Other | 1. This vehicle is used to transport 40FT container. 2. ABS system: type: 4S/2M. Manufacturer: Guangzhou KEMI Electronic Technology Co., Ltd. 3. Under-run protector:with the material of Q235B,be welding with the main body 4. Rear under-run protector: the height above the ground is 500mm Section:150mm*55mm. | |
Introduction
Flatbed semi-trailer truck parts for semi-trailer tailgate structure. Widely used, mainly for medium and heavy-duty
long-distance transport of bulk cargo, applicability, has become the first choice of long-distance freight vehicles.
1, the vehicle body with high-quality steel, advanced technology and strict manufacturing made reasonable vehicle structure, reliable performance, easy operation and good looks.
2, the series trailer frame are wearing beam structure, using the straight-stringer or gooseneck. Web height from 400mm to 550mm manganese plate welding, automatic stringer buried welding, using shot peening frame, beams and stringers penetration welding as a whole.
3, non-independent suspension uses stamped steel type rigid suspension, made by the tandem leaf springs and suspension mountings; reasonable structure, strong rigidity and strength, to cushion the impact of load bearing.
Our production workshop
Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title. We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board pss machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment.
