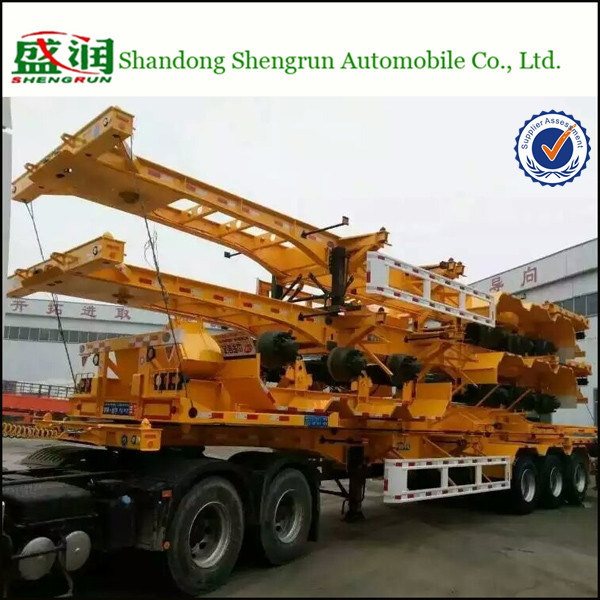

Truck Trailer 40FT Skeleton Container Semi Trailer

Details of achievements classic, quality create the future
.We are China's largest semi-trailer manufacturer, product varieties complete, advanced production technology, has been the praise and trust of customers at home and abroad

vehicle name	2 axle 20ft flatbed container semi trailer
overall dimension(LxWxH)	7380×2480×1640mm
Basic Specifications
Tare Weight	3500 kg
Payload	25T
Wheelbase	1310mm
Running Gear
Axle Specs	2 pieces; 13T FUWA brand, BPW optional
Tire specs	8 pieces; 10.00R20/16pr
Rims	8 pieces; 8.0-20
Suspension	mechanical suspensions
Leaf Spring	10pcs for each
Brake	Dual line pneumatic brake system, T30/30+T30 air chamber; parking brake
Under frame	Main Beam is height 500mm Q345B
frame Beam	Upper plate is 14mm, lower plate is 16mm middle is 8mm
Cross Beam	Mild Alloy Q235
frame Floor	The Thickness is 3mm flat bed
King Pin	90#(3.5') ,50#(2') interchangeable Type:bolted on king pin plate
Landing Gear	28 ton capacity; Double sides operation
Electrical System	1.Voltage: 24v2. Receptacle: 7ways (7 wire harness)
Lamp	LED
Painting	Any color will be available
Accessory
Container Twist Locks	8/12
Tool Box	Two tool box with aset of standard trailer tools
Spare tyre carrier	One piece
Fender	Plastic fenders

COMPANY INTRODUCTIONS:
Shandong shengrun auto. Co., Ltd,a special vehicle manufacturing corporation with the professional experience more than 15 years, certified by the Chinese government manufacture,Majored in semi trailer, special vehicle manufacture, our products are mainly exported toPhilippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries.

OUR SERVICE:
1.Certiifcate:
·All of our semi trailers meet the standard of the CCC&ISO 9001;
·SGS inspection can be done as request and will also issue you the sgs certificate;
·All semi trailers will be quality tested before leave factory and issued out the quality certificate.
2.Customized:
·MOQ=1 units;
·Dimensions&specifications will be decided according to your needs;
·Color&logo as request.
3.Service:
·Best and prompt answer to your questions of the trailer;
·Professional technical support for your requirements with issuing drawings;
·Advice best way of shipping and offer best shipping cost;
·You are always welcome to visit our factory;
·Best after-sale service,one year warranty for all specifications and life-time for the main beam.
