Specifications | |||||
Manufacturer | ShandongShengrunAutomoblieCo.,Ltd | ||||
Model Number | SKW9380GFLA/SKW9401GFL/SKW9407GFLA/SKW9404GFLA/SKW9402GFLA/ SKW9403GFLA/SKW9406GFLB/SKW9403GSN | ||||
Overall Length | 9500mm-13000mm | ||||
Overall Wide | 2500mm | ||||
Overall Height | 3800mm-3990mm | ||||
Tare Weight | about7500KGS-15000KGS | ||||
Total Volume | 30m³-68m³ | ||||

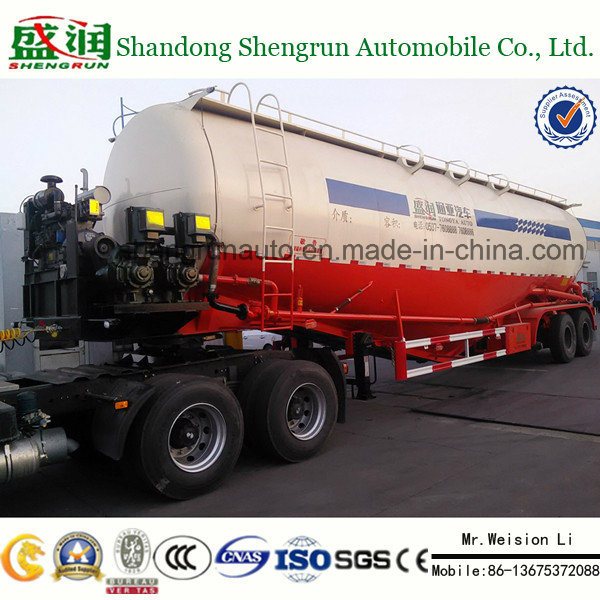

Photo for reference,We can also manufacturer the bulk cement semi trailer according to your special requirements. | |||||
Tanker Body | |||||
Shape | Optional (One Silo with V type or two,Three Silo Design) | Ratedwork Pressure | 0.2MPa | ||
Tanker Body | 5mm or 6mm/Q235carbon steel | Diesel Engine | KEFA4102/4105 or other brand | ||
End plate | 5mm or 6mm/Q235carbon steel | Compssor | BOHAI 12 m³/14 m³ or other brand | ||
Manhole Cover | Cobon steel 500mm | Discharging Valve | Diameter is 3 or 4 inch | ||
Discharging Pipe | 3 or 4 inch rubber hose,1pcs,6m/each | Cat Walk | With(Common or special design) | ||
Chassis | |||||
Axles | 2 or 3 axles,13T/16T,BPW/FUWA/HUAJING brand | ||||
Main Beam | Q345carbon steel ,Welding Design | ||||
Support Legs | JOST(D200T) or China brand 28T | ||||
Suspension | Mechanical suspension/Germany or America type/Air Suspension | ||||
Leaf Spring | 90(W)mm*13(Thickness)*10 Layer or other | ||||
Braking System | WABCO RE6 relay valve; T30/30+T30 Spring brake chamber,45L air chamber | ||||
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional | ||||
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand | ||||
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin | ||||
ABS | Optional | ||||
Painting | Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint | ||||
Accessories | One tool box | ||||
Shipping Terms | By Bulk Cargo,RORO or 40HQ Containers | ||||
about Us
Shandong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.lasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment.
Shengrun mainproductsare:
-tanksemi-trailer,
-bulkcementtanksemi-trailer,
-aluminiumalloytankertrailer,
-container(flatbed)transporttrailer,
-equipmenttrailer(lowbedtrailer),
-rear/sidedumpsemi-trailer,
-timber(wood)transportsemi-trailer,
-cartransporttrailer,lowloader,
-hydraulicmodulartrailer,
-3lines6axles,
-multi-axlehydrauliclowbed,
-bladetransporttrailer,dumptruck,
-tippertruck,tractorcamionetc
.Our Serives:
The quality warranty period of our products is within 12 months after delivery of products.
1.For normal damaged parts claims, service team will reply the distributor with in 3 working days.
2. For serious vehicle problems, it will take us 5 working days to reply the distributor, since our service team has to report it to our factory for final judge
