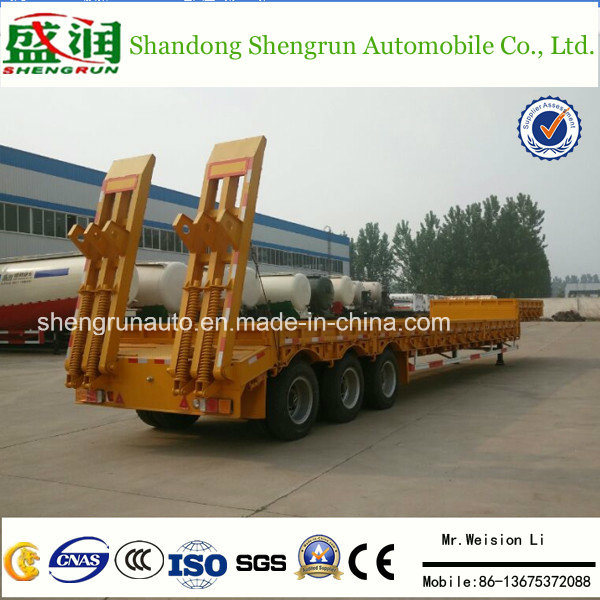

3 Axles Low Bed Flatbed Utility Cargo Semi Truck Trailer

Product Description
40-80tons Tire Uncovered Type Low Boy Trailer With Mechanical Ladders,Low Bed Truck Trailer Price (hydraulic Ladders Are Optional)
A lowboy (low loader in British English, low-bed in western Canada or float in Australia) is asemi-trailer with two drops in deck height: one right after the gooseneck and one right before the wheels. This allows the deck to be extremely low compared with other trailers. It offers the ability to carry legal loads up to 12 ft (3.66 m) tall, which other trailers cannot. Lowboys are used to haul heavy equipment such as bulldozers, industrial equipment etc.

Low flatbed semi-trailer is also very widely used, especially for avariety of mechanical equipment, large objects, road construction equipment, large tanks, and power station equipment machines of various steel transports.

1. Low flatbed semi-trailer has flatbed, concave and tire exposed beam structure, stringers using straight type or gooseneck type. It is with ladder-type frame, stringer-shaped cross-section, with ahigh stiffness and high strength.

2. Lower main plane of the frame dock to ensure the smooth transportation, fit to carry all kinds of engineering machinery, large equipment and steel.

3.Using triaxial balanced type suspension, balanced biaxial suspension or rigid suspension, mass balance blocks are being fitted between the front and rear leaf spring that enable the force balance to both front and rear axles, etc.;

4. Low flatbed semi-trailer series of products for avariety of mechanical equipment, large objects, road construction equipment, large tanks, power station equipment machines of various steel transports, versatile, fast and efficient. Vehicle adopt advanced computer-aided design software, to optimize the design flexible, base on user requirements and design aframe bearing surface, to meet avariety of special cargo.

Specifications of low bed semi trailer
Manufacturer	Shandong Shengrun Automobile Co., LTD
Model Number	SKW9402TDP
Tare Weight	about 8.5T-10T
Dimension	13000mm*3000mm*1700mm (Size can be choose freely)
Loading Capacity	40T-100T
Axle	13T/16T, FUWA/BPW/Huajing Brand
Tire	11.00R2012pieces
Rim	8.00-20 (Special for export market)12pieces
Suspension	Mechanical or air suspension(brand is optional)
Spring leaf	90(W)mm*13(Thickness)mm*10 Layer (especial for exporting market )
King pin	JOST brand 2.0 or 3.5 inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ;Material is Q345B Steel .
Side beam	16mm-25mm channel steel (Material is Q235steel ).
Bottom Platform	5mm thickness diamond steel plate or can be optional
Ladder	Manual type or Hydraulic type
Gooseneck	Big gooseneck
Brake chamber	WABCORE6relayvalve;T30/30+T30Springbrakechamber;Two pieces of 45Lairtanks
ABS	Optional
Valve	WABCO valve
Light	LED light (Special for export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1unit Tire spanner,1 unit gudgeon sleeve and 1unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint
Shipping Terms	By bulk cargo carrier, RORO or 40HQ container.

about us:
Shangdong Shengrun Special Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.

We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, LNG, CNG, and other special vehicles.

Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title. We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board pss machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.

Persisting in "the quality will cast on the brand, the good faith building future" as the enterprise objective, the company's staff devote to the promotion of enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serve all the clients.

Main market:
Export Market Distribution:

Market	Total Revenue (%)	Main Country
The Middle East	22.8	UAE,Bahrain,Iran,Iraq,Israel,Jordan,Kuwait,Lebanon,Oman Qatar, Saudi Arabia,Syria,Yemen,Egypt
Southeast Asia	21.5	Vietnam, Philippines,Laos, Kampuchea, Thailand, Burma, Malaysia, Singapore, Indonesia, Brunei, East Timor.
Central Asia	5.5	Kazakhstan, Uzbekistan, Kyrgyzstan, Turkmenistan, Tajikistan
Other Asia country	5.4	South Korea,India,Pakistan,Turkey
South America	8.8	Brazil, Bolivia, Uruguay, Peru, Chile, Argentina, Dominica, Cuba, and so on.
Europe	7.8	Russia,Belarus and so on.
Africa	27.4	Congo, Tanzania, Ethiopia, Djibouti, Kenya, Angola, Chad, Egypt, Sudan, Libya, Tunisia, Algeria, Sudan, Egypt, Libya, Eritrea, Uganda, Rwanda,Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone,Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria and the Canary Islands. Cameroon, Equatorial Guinea, Gabon and Zambia, Angola,Zimbabwe, Malawi, Mozambique, Botswana, Namibia, and so on.
North America	0.8	Canada ,America,Mexico

Contact me:Tel:0086-13675372088
