Hot Selling Dump Truck Semi Trailer

Specifications of China Trailer Manufacturer Shengrun Tipper Truck Trailer Sale

Specifications
Manufacturer		Shandong Shengrun Automoblie Co., Ltd
Model Nunber		SKW9404ZZX/SKW9405ZZX/SKW9401ZZX/SKW9402ZZX/SKW9401ZZXP
Main Dimension
Dimension	11280*2500*3972mm(outside) 10330*2330*1700mm (work space )
Tare weight	about 15600KGS
Total Volume(m3)	37 m³ or less than 80tons
Side wall thickness(mm)	3mm-6mm Q235 steel
Bottom plate thickness(mm)	5mm-8mm /Q235 steel or can be optional
Lifting system	Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles,13T/16T, FUWA/BPW/Huajing Brand
Landing Gear	JOST (D200T)or China Brand 28Tons
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin or Welding type
Suspension	Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand)
Leaf Spring	90(W)mm*13(Thickness)mm*10 Layer
Braking System	WABCORE6relayvalve;T30/30+T30Springbrakechamber;Two pieces of 45Lairtanks
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS	Optional
Valve	WABCO valve
Light	LED light (Special for export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .

Packaging & Shipping
Shipping Terms:By bulk cargo carrier ,RORO or 40HQ container

China Trailer Manufacturer Shengrun Tipper Truck Trailer Sale

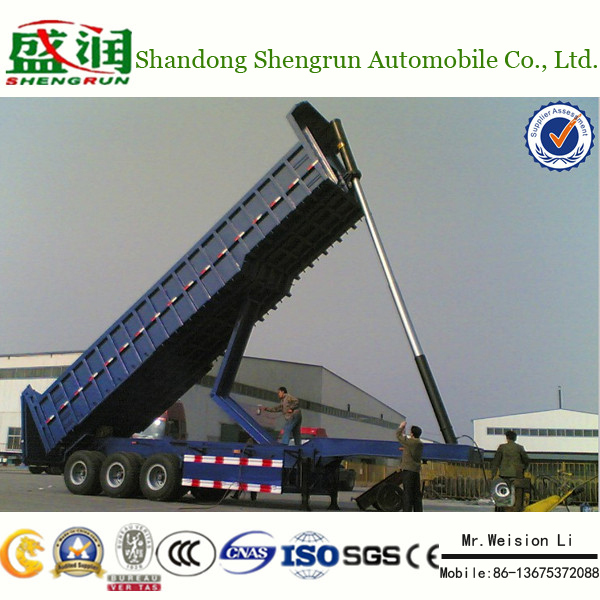

Tipper semi-trailer
A trailer with a cargo container which one end can be raised to allow the cargo (most commonly building materials) to slide out the other. Commonly hinged at the rear, and raised at the front, there are also side unloading dump trailers.
A dump truck (or, UK, dumper truck) is a truck used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with a hydraulically operated open-box bed hinged at the rear, the front of which can be lifted to allow the contents to be deposited on the ground behind the truck at the site of delivery. In the UK and Australia the term applies to off-road construction plant only, and the road vehicle is known as a tipper, tipper lorry (UK) or tip truck.
Tipper semi-trailer is for transportation of coal, ore, building materials and other bulk scattered cargo.
1. Using the way of side dumping and rear dumping, it can effectively improve the transport efficiency of bulk cargo transport.
2. frame and girder of carriages are madeby high quality manganese plate welding. With strong strength, lifting power, stiffness, toughness, strong bearing capacity, permanent deformation does not occur to it.
3. Sophisticated technology: the main components adopt advanced equipment processing, girder adopt automatic submerged arc welding. The axle assembly machine is used for axles and spring assembly.
.

ExportMarketDistribution:

Market	TotalRevenue(%)	Main Country
TheMiddleEast	22.8	UAE,Bahrain,Iran,Iraq,Israel,Jordan,Kuwait,Lebanon,OmanQatar, SaudiArabia,Syria,Yemen,Egypt
SoutheastAsia	21.5	Vietnam,Philippines,Laos,Kampuchea,Thailand,Burma, Malaysia,Singapore,Indonesia,Brunei,EastTimor.
CentralAsia	5.5	Kazakhstan,Uzbekistan,Kyrgyzstan,Turkmenistan,Tajikistan
OtherAsiacountry	5.4	SouthKorea,India,Pakistan,Turkey
SouthAmerica	8.8	Brazil,Bolivia,Uruguay,Peru,Chile,Argentina,Dominica,Cuba, andsoon.
Europe	7.8	Russia,Belarusandsoon.
Africa	27.4	Congo,Tanzania,Ethiopia,Djibouti,Kenya,Angola,Chad, Egypt,Sudan,Libya,Tunisia,Algeria,Sudan,Egypt,Libya, Eritrea,Uganda,Rwanda,BurundiandtheSeychelles. Mauritania,WesternSahara,Senegal,Gambia,Mali, BurkinaFaso,Guinea,Guinea-Bissau,CapeVerde, SierraLeone,Liberia,Côted'Ivoire,Ghana,Togo,Benin, Niger,NigeriaandtheCanaryIslands.Cameroon,Equatorial Guinea,GabonandZambia,Angola,Zimbabwe, Malawi,Mozambique,Botswana,Namibia,andsoon.
NorthAmerica	0.8	Canada,America,Mexico
