Truck Trailer Manufacturers Sell Flatbed Container Semi Trailer

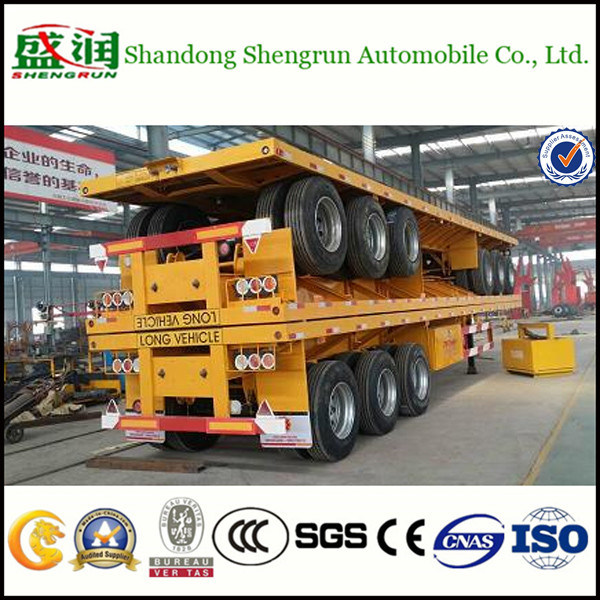

Shengrun 12.4m Three Axle Flatbed Semi Trailer/truck Trailer/ Container Trailer
Flatbed semi trailers
It consists of just a load floor and removable side rails and a bulkhead in front to protect the tractor in the event of a load shift. It can haul almost anything that can be stacked o and strapped down.
Cargo semi trailers are without fence and widely used in modern society. This series is particularly suitable for medium and long distance transportation of cargo.
1. Truck body adopts high strength international steel.
Vehicle tare weight is lighter, while ensuring its ability to resist distortion, to be astigmatic, to anti-dump, carrying capacity for different kinds of road.
2. Chassis of this series is beam-passing structure and longitudinal beam adopts flat type or gooseneck type. Web plate height is from 400mm to550mm, manganese plate jointing, longitudinal beam adopts automatic submerged welding, and chassis adopt shot blast, cross beam get through the longitudinal beam and welding as a whole
Suspension is made of tandem leaf spring and suspension bearing. Reasonable structure, strong rigidity and intensity, used for bearing load and cushion the blow.

Specifications
Manufacturer	Shandong Shengrun Automoblie Co., Ltd
Model Nunber	SKW9352TJZG/SKW9351TJZG/SKW9401TJZ/SKW9402TJZG/SKW9404TJZG/SKW9405TJZG/SKW9406TJZG/SKW9401P
Tare Weight	about5.9T
Dimension	12500mm*2500mm*1575mm
Loading Capacity	45T
Axle	13 T/16T,FUWA/BPW/Huajing Brand
Rim	9.00-22.5 12pieces
Tire	12.00R22.5/315 80R22.5 12pieces
Suspension	Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand)
Spring leaf	90(W)mm*13(Thickness)mm*10 Layer (especial for exporting market )
King pin	JOST brand 2.0 or 3.5 inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
Side beam	16mm channel steel (Material is Q235steel).
Bottom platform	3mm diamond steel plate
Brake chamber	WABCORE6relayvalve;T30/30+T30Springbrakechamber;Two pieces of 45Lairtanks
ABS	Optional
Twist Locks	Four,Eight or Twelve pieces (Lifting type or Twist screw type)
Valve	WABCO valve (especial for exporting market )
Light	LED light (especial for exporting market )
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

Our company
Shandong Sheng Run Automobiles are Sold in five continents 13 regions,is aglobal common choice of more than 20 countries.
Shandong Liang Shan Tonya Automobile Co.,Ltd is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management. We are the full-size Modified Truck enterprise which integrate the design of product, scientific research developing
We are the full-size Modified Truck enterprise which integrate the design of product, scientific research developing, production and sale together, possessing subsidiary companies of Automobile production, Automobile trade and Automobile fittings production, etc. our leading products include "Tongyada" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks and other special vehicles.
Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title. We have top-notch numerical control cutting machine, automatic welding machine, large-size Bending Machine and Board Press machine in china, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipments. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.
