Shengrun Manufacturer Container Cargo Transport Truck Semi 40FT Flatbed Trailer

Manufacturing 3axles 40ft flatbed semi trailers for sale

Specifications:

Item	Unit	Quantity	Notice
size			13000length*2500width*2750hight, detail according to the drawing
axle	piece	3	13Ton FW
tyre	piece	12	11.00R20-16
rim	piece	12	8.0-20
leaf spring	piece	6	10pieces III type
braking system	set		2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters.
electricalsystem	set	1	24 volt electrical system.7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors
relay valve	whole vehicle	1	WABCO
landing gear	pair	1	19' single side operation
kingpin	piece	1	50# domestic brand
tie-in	piece	2	haldex
chamber	piece	4	4 double chamber
upper and lower wing plates			14/16mm,width146mm,using the highly quality Q345 steel,
twist locks		12	can load 1*40',2*20'or 1*20 containers
main beam			height: 500mm,web plate:6mm,using the highly quality Q345 steel
side beam			16# channel steel
floor			3 mm checkered plate
cross beam			80*40 square tube
reflectors			Red triangle reflectors at the rear of the trailer andon side
Shotblastingandpaint			Chassis is completely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIonAL alkyd FINISH TOP coat.total 80-100 microns.
spare tyre carrier		2	standard
color			according to required RAL

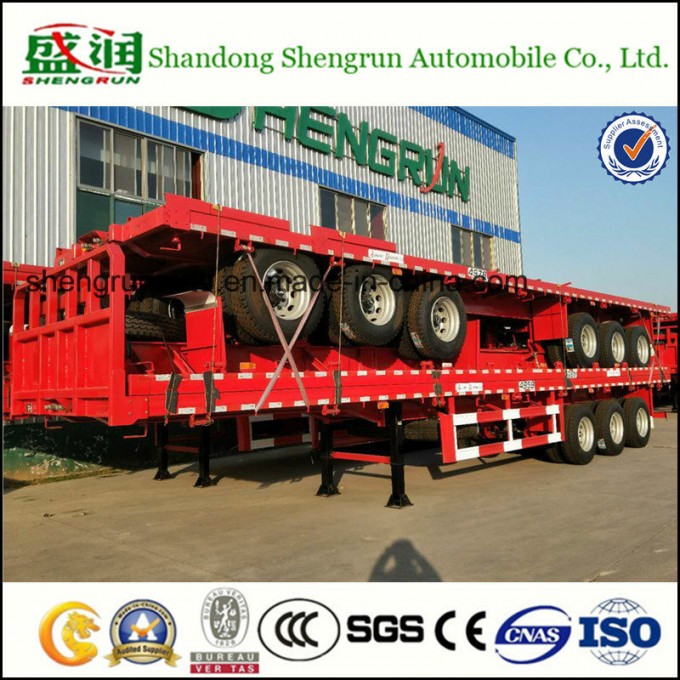

Details of the 40ft flatbed trailer for your reference

Customized:
1-trailers for 20ft,30ft,40ft,45ft,48ft,50ft,53ft container shipping, or bulk cargo, bulk cement bags
2-flatbed or skeleton chassis type
3-Main beam:500mm height
4-material of the main beam: Q345
5-Suspension: spring suspension, Rigid, single point, bogie or air suspension
6-Axles number: 23 4axles.
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional

Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data →sign contract (P/I) →30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news →completing production;
6**Balance payment →ex works →shipment →custom clearance →A/S service for 1year.
