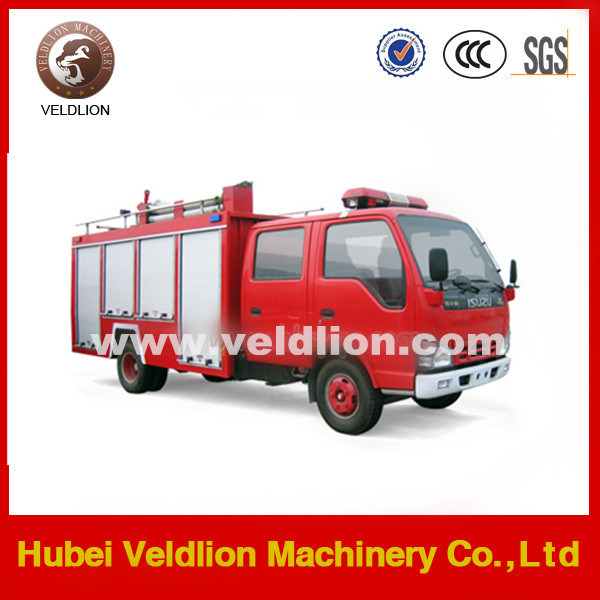

Isuzu 3500L/3.5m3 Water-Foam Fire Fighting Truck

QUICK DETAILS OF3500L Fire Truck
(1) Water / Foam tank fire fighting trucks
(2) Gross weight: 16000kg
(3) Water tanker volume: 3500 litres
(4) Fire pump: CB10/30
(5) Fire monitor: PL32

We can offer4x2, 6x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, Fire Trucks/ fire fighting trucks.

I. FIRE FIGHTING TRUCK SERIES

FIRE FIGHTING TRUCK SPARE PARTS

1. Fire fighting truck chassis Model: HOWO, SINOTRUK, NORTH BENZ, SHACMAN, DONGFENG, AUMAN, tec.

2.Engine Model: Dongfeng Cummins (260HP-375HP), Yuchai (290HP-375HP), weichai(270HP-380HP).
3. Drive model: 4x2 , 6x4 , 8x4;
4. Engine: EuroIIand EuroIIIemission standard;
5.Right/Left hand drive ;

II.PROFESSIonAL PACKING AND TRANSPORTATION

III.FACTORY VIEW

IV.COMPANY INTRODUCE

HUBEI VELDLION MACHINERY CO., Ltd is an authorized fire truck manufacturer.We arespecialized inthe production of a variety of special-purpose vehicles.

Createvalueforourcustomersisourcompany'sconcept.Welcometoenquiryfromus,Let's our sales team make you more great in this field.

V.OUR MAIN PRODUCT:

1. Dump Truck/Tipper Truck

2. Fire Fighting Truck
3. Truck with Crane

4. Semi-Trailer and Tractor Truck
5. Water Tank Truck,
6. Fuel Tank Truck,
7.Concrete mixer truck,
8. Fecal suction truck, sewage suction truck,
9.Light Cargo Truck,Mini Truck,
10. High-altitude operation truck,
11.Garbage Truck,CompactorGarbage Truck, Sealed Garbage Truck,
12. Bulk Cement Truck, Powder tank truck

13.Chemical liquid tanktruck

14. Van truck, insulated truck, Refrigeration Truck


VI.Strong advantage:

1.More than 300 workers ,large and advanced production;2.Have professional engineer, can offer the best and cheapest design;3.Build strict QC team to guarantee the quality;4.Own profesional sales team, can offer follow-up service;
5.High quality with resonable price;
6.Euro II,III,IV,V emission standard are optional.

VII.ConTACT INFORMATION

If you want to know more about our3500L Fire Truck,please do not hesitate contact with us as below:

HUBEI VELDLION MACHINERY CO., Ltd

ATTN: Real Liu

Mobile phone: +86 13656866460

Website: www.veldlion.com

VIII.PARAMETERS DATASHEET OF3500L Fire Truck

ISUZU watertankfiretruck 3500liters
Products	ISUZU watertankfiretruck	Dimension	6205×1900×2700 mm
Chassis	NKR77LLLWCJAY	Tank capacity	3000liters
Totalmass	6510	Approachangle/departureangle	24/13
Ratedmass	2050	Front/rearsuspension	1015/1830
K u rbmass	4058	Max.speed	90 km/h
Engine	4KH1-TC , turbochargerdieselengine
Displacement	2999	Power	96,130hp
manufacturer	ISUZUdieselengineco.,ltd
Emission	GB3847-2005,GB17691-2005EUROIII
AXLES	2	Front track	1504
Wheelbase	3360	Rear track	1425
Tires	6	Tirestype	7.50-15,7.50R15,7.00-16,7.00R16
Fuel	diesel	Numbersofleafspring	8/6+5
Axleload	1810/4700	Thenumberofoccupantsinthedrivercab	2+3,fourdoors,doublerowcab
Remarks	1 . T ank capacity: 3500L 2 .Firepump ,model CB2 0 3 . Theflowrate offirepump : lessthan2 0 L / S 4 . Pressure offirepump : lessthan 1.0mpa 5 .FirecannonmodePS20 6 .Firecannonflow:20L/S 7.Water cannon shotrange : morethan30m 8.Watercannonpssure:1.0-1.2Mpa
