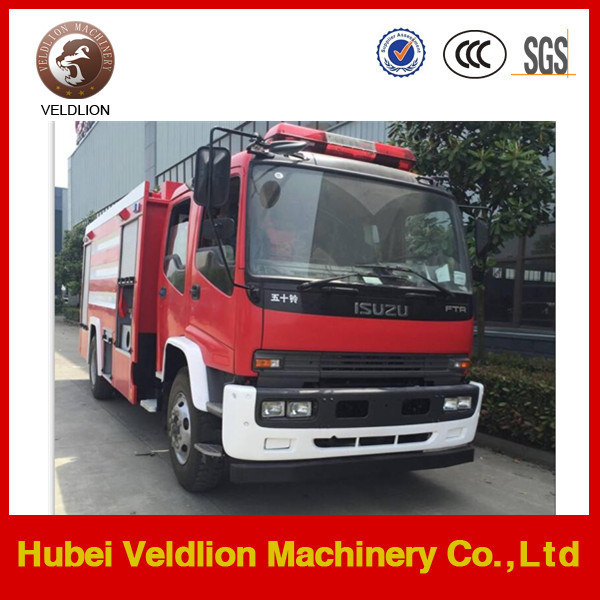

1. Fire fighting truck & fire truck
(1) Main specification data of this truck| Chassis | Chassis brand | / | ISUZU |
| Model | / | QL11609 |
| Drive type | / | 4x2 left hand drive |
| Cabin | / | double cabin,two row,5 seats |
| Overall dimension(L*W*H) | mm | 8430x2500x3660 |
| Total mass | kg | 14950 |
| Rated Loading capacity | kg | 6100 |
| Wheel base | mm | 4700 |
| Front /rear suspension | mm | 1335/2265 |
| Approach/departure angle | (°) | 16/12 |
| Spring No. | / | 7/7+5 |
| Tyre No. | pcs | 6, (front 2, rear 4) |
| Type & Size of Tyre | / | 10.00-20 |
| Axle No. | / | 2 |
| Steering wheel | / | left hand drive |
| Gear box | / | 5 speed forward with 1 reverse, manual |
| Engine | Engine model | / | 4HK1-TCG40 |
| Engine brand | / | ISUZU |
| Engine type | / | 4 cylinders in line |
| Maximum power | HP/kw | 190/139 |
| Fuel type | / | diesel |
| Displacement | ml | 5193 |
| Max torque | N.m | / |
| Rated rotor speed | Rpm | / |
| Emission Standard | / | Euro IV |
| 6,000 litres water tank & 2000 litres foam tank |
| Fire pump | Model | / | CB10/60,Normal pssure pump |
| Pressure | Mpa | ≥1.0 |
| Max suction height | m | 7 |
| Flux | L/S | 60 |
| Rated speed | r/min | 3000 |
| Time of drawing water (s) | s | ≤35 |
| Input diameter | mm | 125 |
| Outlet diameter | mm | 2xΦ75 |
| Fire monitor | Model | / | PL48 |
| Fire fighting nozzle range | Water (m) | ≥60 |
| Foam (m) | ≥55 |
| Flux | L/S | 48 |
| Rated Working pssure | Mpa | 1 |
| Rotation angle | (°) | 360 |
(2)We can offer various kinds offire fighting truck. Truck brand: Dongfeng, IZUSU, SINOTRUK HOWO, Drive model : 4x2 , 6x4, 8x4,
Tank volume: 1-12m3
(3) More water tank truck photos for your reference
Main parts of the water tank truck
Factory view
2. Shipping photos
By roro ship or bulk ship
3. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized fire truck manufacturer.We arespecialized inthe production of a variety of special-purpose vehicles.
Creatingvalueforourcustomersisourcompany'sconcept.Welcometoenquiryfromus,Let's our sales team make you more great in this field.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
4. Why chosse us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.
Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.
