We can offer4x2, 6x4, 8x4, chassis brand Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, etc.

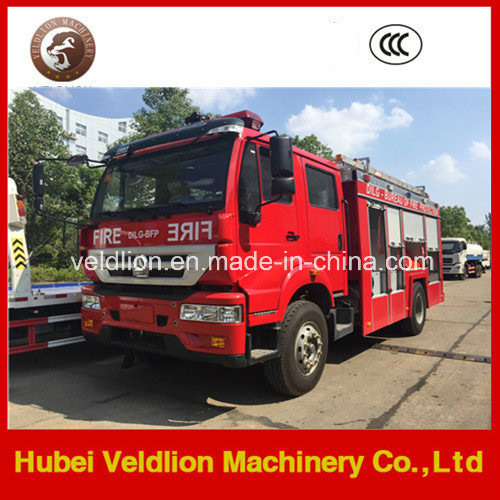

More photos for your reference:
2. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized fire truck manufacturer. We are specialized in the production of avariety of special-purpose vehicles.
Creating value for our customersis our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Dump Truck /Tipper Truck
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck mounted crane
4. Oil Tank Truck /Fuel Tanker Truck
5. Water truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage suction truck,
9. Cement Powder Tank truck/Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
3. Contact us
Atten: Ms Julia
Mobile: 0086-15927026165
www.veldlion.com
4. Parameters datasheet
| Chassis | Chassis brand | / | Sinotruk | ISUZU |
| Model | / | ZZ1167 | QL11609 | |
| Drive type | / | 4x2 left hand drive | 4x2 left hand drive | |
| Cabin | / | double cabin,two row,5 seats | double cabin,two row,5 seats | |
| Overall dimension(L*W*H) | mm | 8820×2500×3450 | 8430x2500x3660 | |
| Total mass | kg | 19000 | 14950 | |
| Rated Loading capacity | kg | 7000 | 6100 | |
| Wheel base | mm | 4600 | 4700 | |
| Front /rear suspension | mm | 1500/2650 | 1335/2265 | |
| Approach/departure angle | (°) | 16/10 | 16/12 | |
| Spring No. | / | 10/9+6 | 7/7+5 | |
| Tyre No. | pcs | 6, (front 2, rear 4) | 6, (front 2, rear 4) | |
| Type &Size of Tyre | / | 11.00-20 | 10.00-20 | |
| Axle No. | / | 2 | 2 | |
| Steering wheel | / | left hand drive | left hand drive | |
| Gear box | / | HW15710,10 speed forward with 2reverse, manual | 5 speed forward with 1reverse, manual | |
| Engine | Engine model | / | WD615.62 | 4HK1-TCG40 |
| Engine brand | / | Sinotruk weichai | ISUZU | |
| Engine type | / | 6-cylinder in-line with water cooling,intercooling, 4-stroke direct injection | 4 cylinders in line | |
| Maximum power | HP/kw | 196/266 | 190/139 | |
| Fuel type | / | diesel | diesel | |
| Displacement | ml | 9726 | 5193 | |
| Max torque | N.m | 1100 | / | |
| Rated rotor speed | Rpm | 2200 | / | |
| Emission Standard | / | Euro II | Euro IV | |
| 6,000 litres water tank &2000 litres foam tank | ||||
| Fire pump | Model | / | CB10/60,Normal pssure pump | CB10/60,Normal pssure pump |
| Pressure | Mpa | ≥1.0 | ≥1.0 | |
| Max suction height | m | 7 | 7 | |
| Flux | L/S | 60 | 60 | |
| Rated speed | r/min | 3000 | 3000 | |
| Time of drawing water (s) | s | ≤35 | ≤35 | |
| Input diameter | mm | 125 | 125 | |
| Outlet diameter | mm | 2xΦ75 | 2xΦ75 | |
| Fire monitor | Model | / | PL48 | PL48 |
| Fire fighting nozzle range | Water (m) | ≥60 | ≥60 | |
| Foam (m) | ≥55 | ≥55 | ||
| Flux | L/S | 48 | 48 | |
| Rated Working pssure | Mpa | 1 | 1 | |
| Rotation angle | (°) | 360 | 360 | |
