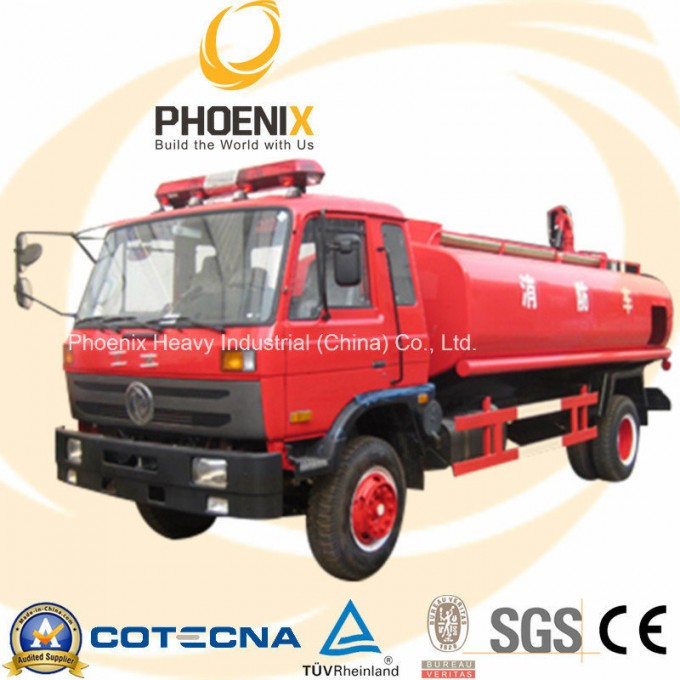

Dongfeng Water Tank Fire Fighting Truck 4X2

Features:

1. fire truck Main equipped:
1.fire truck chassis constitute cab, engine, gear box, steering wheel,beam,tyre,axles,etc.
2.Fire truck upper body with water/foam tank, fire pump,fire monitor,pipe,etc.
3.fire truck with Water fire fighting tank and foam fire fighting tank .or water fire fighting tank.
4.fire truck with fire pump is normal pssure or middle-low pssure, made in China or imported.
5.fire truck with fire monitor is controlled by Manual or Electric.

2.fire truck series:
fire turck capacity : 2000L- 25000L
fire truck drive type: 4x2,4x4,6x4, 6x6, 8x4
fire truck tank material: carbon steel, stainless steel, PE.
fire truck hand drive type: left hand drive , right hand drive

ProductsTechnicalSpecification
Brand-Series		Dongfeng
ProductName		4*2Firetruck
ChassisModel		EQ1141KJ
EmissionStandard		Euro3
Fueltype		Diesel
Cabin		Dongfeng153,Doublerow
Wholevehicle maindimensions(mm)	Overalldimensions(L×W×H)	7900*2480*3390
	Wheelbase	4500
	Frontoverhang	1205
	Rearoverhang	2135
	Min.groundclearance	540
Weightdata(kg)	G.V.W	14900
	Curbweight(chassis)	8380
	Maxpayload	12000
Wholevehicle mainperformance	Max.speed(km/h)	85
	Max.slopeofclimb(%)	30
Engine	Model	B19033
	Maximumpower	140kw/190hp
	Numberofcylinders	6
	Displacement(L)	5.9
	EngineManufacturer	DongfengcumminsEngineCo.,Ltd.
Transmission	Model	6
	Numberofgears	6forwardgears&1reverse
Axle	RearLoadcapacity(ton)	10T
Suspension	Leafspring	8/10+8
SteeringWheel	left/righthanddrive	LHD
Brakesystem	Servicebrake	Airbraking
Electricdevice	Ratedvoltage	24V
Tyres&Quantity		10.0020&6+1
TankDescription
Tankcapacity		Water:6000L
		Water:4500L Foam:1500L
Firepump	Model	CB10/40
	Flux	40L/S
	Pressure	1.0Mpa
Firefightingnozzle	Model	PP32
	Pressure	1.0Mpa
PTO		SandwichPTO,splashing-typelubricate,canputoutfirewhendriving.
Materialofcarriage		CarriageismadeofhighqualitysteelandAluminumembossedsheet
Color		Thewholevehicleisredforfirefighting, therearewhiteinthemiddleoftruckinaccordancewiththewholetruck.
OptionalConfiguration(√:StandardEquipmento:Optional×:NotAvailable)
AirConditioner		√
Cab,Halfrow		√
PowerSteering		√
Sidebumper		√
Rearbumper		√
Radialtire		o
