Detailed Description
Steel constructions&co
lon; All chassis adopts the high-tensile steel
Running system&co
lon; Axles and suspensions system are complied
Comply with the internatio
nal standards
Brake system&co
lon; Adopt the internatio
nal brands
Electric system&co
lon; China famous brands;
Painting&co
lon; Zinc-rich primer and modified urethane topcoat as customers' choices

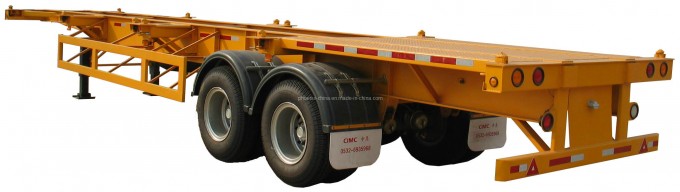

| Description of vehicle | 40" skeleton semitrailer | |
| Axle | 2-axle | 13 tons |
| Gross weight (kg) | 35000 | |
| Tare weight (kg) | 4520 | |
| Payload (kg) | 30480 | |
| External dimension (L*W*H) mm | 12340x2490x1600 | |
| Wheel base(mm) | 7950+1305 | |
| Track space(mm) | 1840/1840 | |
| Tires | 11.00R20 | Radial tyres |
| Leaf spring | 11/11 | |
| Rear overhang(mm) | 1845/2185 | |
| No. of locks | 12 | |
| Departure angle | 15° | |
| Trail pin | 50mm | (90mm can be optional) |
| ACCESSORIES | TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER
TWO SPARE WHEEL HOLDER(WINCH) BUT NO SPARE TYRES AND WHEELS; |
