Detailed Description
Saic Ho
ngyan Genlyon dump truck, Italy advanced techonology
We are aleading manufacturer of 30t-40t genlyon dump truck, also named tipper truck and dumper. We can provide customers all kinds of dump truck with competitive price and high quality, We can also design for different kinds of genlyon dump truck, Following is the dump truck pictures, any enquiry, please feel free to co
ntact us.

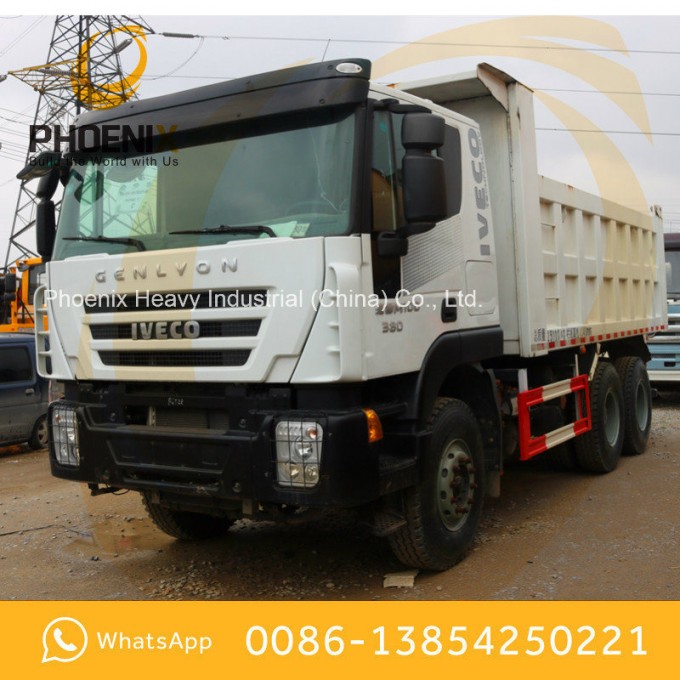

340HP 6X4 Ho
ngyan IVECO Dump Truck with C100 Cabin
Main Specifications:Engine:Cursor9 Engine (IVECO Technology)
Rated Power:340HP
Drive Type:6×4/LHD
Cabin Type:Genlyon C100 flat roof with one berth
C100 Cabin Configuration:Cabin electrical tilt(for semi-trailer only), Automatic air condition, driver machinery seat, passenger fixed seat, MP3 player+radio. Cab mechanical absorber suspension, manual mirror without heated, CAN BUS system.
Genlyon (Jie lion) heavy truck driving comfort, safety, reliability, eco
nomy and electro
nic level reached domestic leading level.
| Chassis Model | CQ3254HTG, 6x4 Dump chassis |
| Vehicle main dimension | Overall dimension(LxWxH)mm | 8115× 2500× 3510 |
| wheel base(mm) | 3600+1350 |
| wheel track(front/rear)(mm) | 2006/1850/1850 |
| Overhang(front/rear)(mm) | 1435/1730 |
| Approach/Departure angle | 25/19 |
| Weight in KGS | GVW | 25000 |
| Curb weight | 12010 |
| Loading capacity | 12860 |
| Front axles loading capacity | Forging Press I-Shaped Axle, Capacity: 7000 kg |
| Rear axles loading capacity | Double Reduction, with Differential Lock, 18000 kg |
| Max driving speed(km/h) | 90 |
| Engine | Brand | SFH |
| Model | C9 340 |
| Type | Inline six-cylinder, water-cooled, four stroke, turbocharged and intercooled, electronically controlled fuel injection pump fuel supply rate |
| (PS)KW | (340)250 |
| Maximum torque | 1300Nm @1200/1600rpm |
| Emission standard | Europe III |
Contact Information:
Mobile:(0086)13854250221 Product Image
