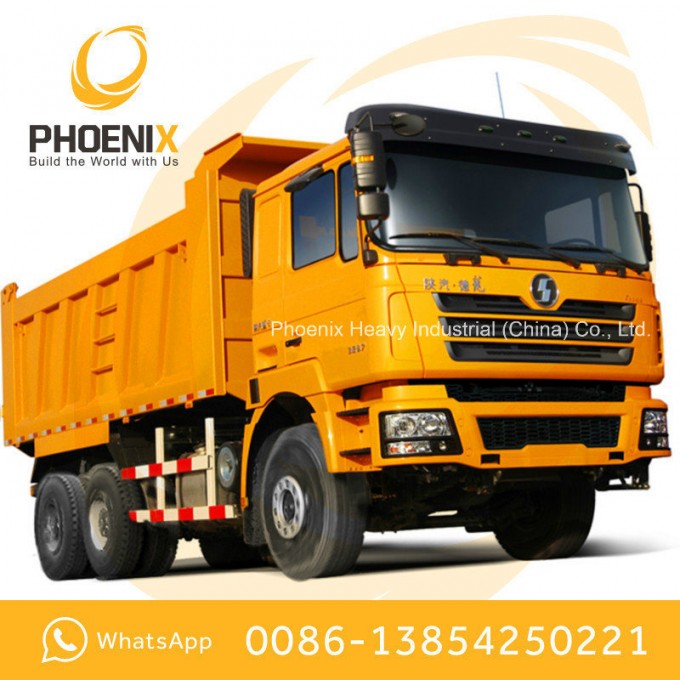

Used Shacman 10 Wheels Dump Truck Tipper with Man Cabin for Africa

-Good Condition
-Low Price
-Strong Quality

Low Price Used 10 wheels SHACMANDump Truck Tipper 6X4 with Excellent condition and Strong Quality.

Shacman D'long 6x4 375HP heavy duty Dump Truck
Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: MAN cab(normal lengthen series extra widthen with flat head, single sleeping

Engine
Engine brand: Steyr (Weichai)
Engine model: WD12.375 375HP Euro II
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement: 11.596 liters
Max. Output: 420HP@2200rpm
Max torque: 1760NM@1300-1600rpm
Bore/Stroke(mm): 126/155
Specific fuel consumption: 198g/Kwh

Gear box
Gear box: Fuller 9JS180-B
Clutch: Φ 430 pull-type diaphragm clutch
Steering: ZF technology

Tyre
Tyre: 12.00R24, 12.00R20
No. Of tyre: 10+1spare
Front axle: Steyr 6.5 ton front axle
Rear axle: MAN technology 16 ton double reduction driving axle

Body:
Capacity: 20.01CBM
Thickness of body steel(mm): Floor 8 mm side & back 4mm
Tipping type: Front tipping type











Packing and shipment:



Contact Information:
Mobile:(0086)13854250221

Type		Dump Truck
Traction Type		6x4
Model		SX3254JS384
Brand		SHACMAN
Driving type		RHD/LHD
Cabin		F2000 lengthen flat roof cabin,one sleeper, air heater
Engine	Brand	WEICHAI
	Model	WD615.44 EUR2
	Power	320hp
	Type	Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter cooling
	Displacement	9.726liters
Max Output		243kw
Max torque		1250NM@1400-1600rpm
Gear box		9JS135
Clutch		430 diaphragm type
Steering		ZF technology
Axle	front	7.5t MAN
	rear	13t STR, double reduction drive axle ration:5.73
Tyre		11.00-20
frame(mm)		850×300×(8+7)
Fuel tank capacity (L)		380
Max. Speed (km/h)		77
Kerb Mass		11200kg
Total mass		25000kg
Wheel base(mm)		3800+1350
Front overhang (mm)		1525
Rear overhang (mm)		1600
Front track (mm)		1939
Rear track(mm)		1800
Approach angle		16degree
Departure angle		66degree
Dimension of box(mm)		5200/5400/5600x2300x1500
Size of truck		8275x2490x3300
