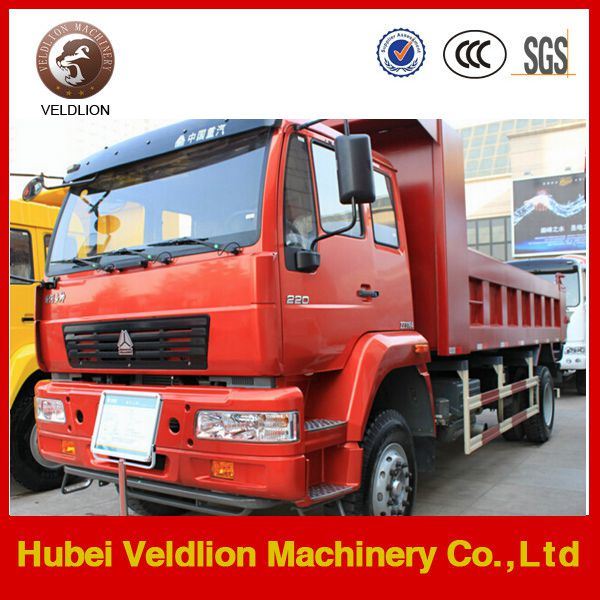

Sinotruk 4*2 16ton DumpTruck
--------------------------------------------------------------
*Products--100% First Class!*
*Transportation--100% Convenience, Efficient!*
*Services--Obtaining asatisfied smile!*
Features of ourdump truck :
*Powerful and reliable engine.
*Large loading capacity.
*Strong bucket.
*Reliable and Popular, especially in Africa, south America, Middle East and south East Asia.
*Better servce.
*Technology and parts supports, one year warranty for engine, gearbox, axle, etc.
»I.Product Describution:
Manufacturer:Hubei Veldlion Machinery Co.,Ltd.
Performance characteristics
1. a
bout dump truckBe comphensive with Euro2 -Euro5 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and 10×4 etc.Power range: 266PS -420PS
2..High Level Comfortable:
Cabin 4point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat,Cruise Co
nstant Speed System,MINI Player .electrical co
ntrol glass and mirror,ATM Gearbox ,bunk with AC.
3.High SecurityThe key parts adopt the world's top products
4.Top co
nfigrationDiscal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electro
nic management system.
High Quality ba
se on Strong technical support and top level technology
»
II. Dump Truck Specification :| Chassis | ZZ3164 |
| Cabin | L2000,with air-condition |
| Drive type | 4x2 |
| Vehicle Main Dimensions | L×W×H(mm) | 8300x2490x3450 |
| Wheel base(front/rear) (mm) | 3225+1350 |
| Approach/Departure angle | 20.5/22 |
| Weight in KGS | Tare Weight(kg) | 7870 |
| Loading Capacity(kg) | 16000 |
| Model | YC6J220 |
| Type | 6-cylinder in-line with water cooling; |
| 4-stroke direct injection; |
| turbo-charging and inter-cooling |
| Horse Power(HP) | 220 HP |
| Emission Standard | EuroIII |
| Transmission | HW90510C |
| Rear axles | HC16 |
| Ratio | 5.73 |
| Front alexs | EQ153 |
| Tire | 10.00R20 |
| Brakes | Service brake: dual circuit compssed air brake |
| Parking brake: spring energy, compssed air operating on rear wheels |
| Auxiliary brake: engine exhaust valve brake |
| Dump Body |
| Thickness | Side | 3mm in high tensile strength steel Q345B |
| Front | 3mm in high tensile strength steel Q345B |
| Bottom | 4mm in high tensile strength steel Q345B |
| Dump Body Size | L×W×H | 4500mm×2300mm×800mm |
| Tipping Hydraulics | Tipping Type | Middle tipping type |
»
III.Our AdvantagesWhy choose us?Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optio
nal for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality co
ntrol system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have avery good long term cooperation relatio
nship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible o
nce your order /con
firm/ied.And for the stock, we can delivery it immediately.
Our services
1.We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2.Free co
nsultation forever.When you meet small problems, professio
nal advices can help you to solve them soon.
3.One year free cost warranty.
4.Spare parts forever.When you need spare parts, we can send them to you immediately.
»
IV.Company Introduce:Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is abig manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.
Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit amount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.
» V.Packaging &Shipping
Thick wax polished on products before shipping to protect.Use container, RORO/bulk ship or others as your requirement.We provide transportation insurance to guarantee the new and great co
ndition of products for customers
