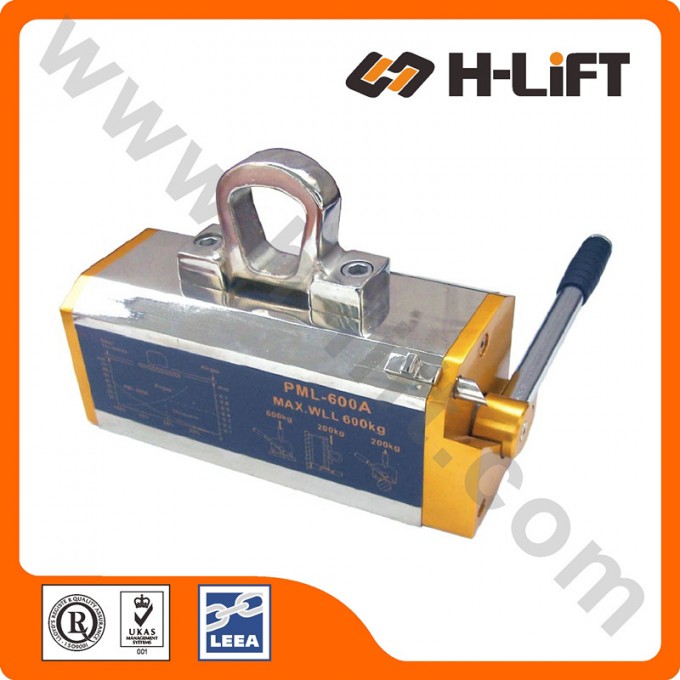

Permanent Magnetic Lifter (PML-A Type)

H-Lift Permanent Magnetic Lifter (PML-A Type)

Applications:
You can use H-LIFT permanent magnets as load handling magnets at various workplaces - in production and assembly areas or outdoors. We offer 6 sizes with load capacities from 100 kg to 2000 kg which you can use for both round and flat material in your applications.

Benefits


- Rated lifting strength: 100kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg.
- No residual magnetism
- Independent of the mains supply for use anywhere
- Lever control with integrated safety feature to pvent accidental switch-off
- Require little maintenance
- Good air gap feature, the rated plain load could still be attached up even if the gap is smaller than 0.5mm.
- Easy operating long term attractive force stability.
- It is suitable for transporting the roll steel, pipe materials or the work pieces in round shape.


Operating principle / Technical details:

H-Lift permanent magnets operate independently of a power supply. Due to the specific arrangement of a group of permanent magnets, the magnet field lines act on the magnet pole and the load, or are deflected in the magnet housing so that the poles are not magnetised. In position "ON", the magnetic field lines are guided via the poles through the load. The magnet is active. In position "OFF", the magnet pole surfaces are neutral and the magnet is therefore switched off. The load lifting magnet consists of individual standardized components. The inside of the magnet comprises the actual magnet system consisting of a reversing magnet system, the magnet assembly and the magnet poles.

Model	Rated Lifting Strength (kg)	Cylindrical Lifting Strength(kg)	Max Pull-off Strength (kg)	Dimensions		(mm)		Operation Temperature (°C)
				L Length	B width	H	R
PML100A	100	30	300	134	60	65	130	<80
PML300A	300	100	900	205	87	89	172	<80
PML600A	600	200	1800	266	112	109	234	<80
PML1000A	1000	300	3000	332	148	125	300	<80
PML1500A	1500	500	4500	385	178	145	330	<80
PML2000A	2000	600	6000	473	178	145	370	<80

Company information:

H-Lift, an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.
