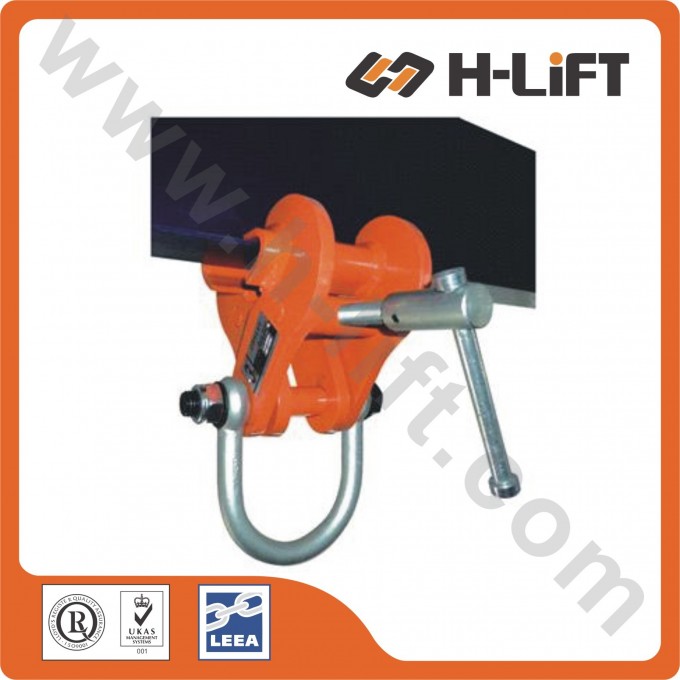

Beam Clamp, Lifting Clamp with Fixed Jaw and Large Lifting Shackle

H-Lift Steel Beam Clamp With Fixed Jaw and Large Lifting Shackle:
1. Capacity: 2ton to 15ton
2. Beam clamp width: 76mm~610mm

BCL type beam clamp, with fixed jaw & lifting shackle. This type of beam clamp is a safe sure way of securing any load onto a girder and its unique clamping action instills confidence into the operator. It is simple to use and complies with all regulations.

Extremely versatile, can be used when lifting, pulling or as an anchor
Gives maximum jaw grip adjustment
Dacromet finished lifting shackles and spindle with much better anti-corrosion ability
Larger lifting shackle makes it more easier to attach other equipments to it.
Easy application
Engineered for practical use where reliability is essential
Test certificate supplied

Company information:

H-Lift is an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting equipment Engineer Association). We supply all kinds of lifting & hoisting equipment, webbing and round sling, ratchet tie down, chain and chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.

Specification of beam clamp:

Model		BCL020	BCL030	BCL030A	BCL040	BCL050	BCL050A	BCL060	BCL100	BCL150	BCL150A
Capacity	t	2	3	3	4	5	5	6	10	15	15
Proof Load	kN	39.2	58.8	58.8	78.4	98	98	117.6	196	294	294
Adjust Beam	mm	76-190	76-190	127-350	150-254	76-190	150-305	203-457	203-457	203-457	406-610
Dimensions(mm)	A	130	130	130	130	130	130	140	140	170	170
	B	3	12	12	10	12	12	12	12	20	20
	D	90	102	102	112	116	116	116	116	116.5	116.5
	Emax	254	275	438	371	306	422	608	608	648	800
	Emin	133	166	228	185	191	264	267	267	400	600
	G	275	275	560	410	295	410	560	560	660	810
	Kmax	263	289	375	369	338	413	511	530	684	812
	Kmin	223	251	294	308	300	360	402	421	608	706
	H	20	20	20	25	25	25	25	32	40	40
