Push Trolley Clamp (TCP Type)

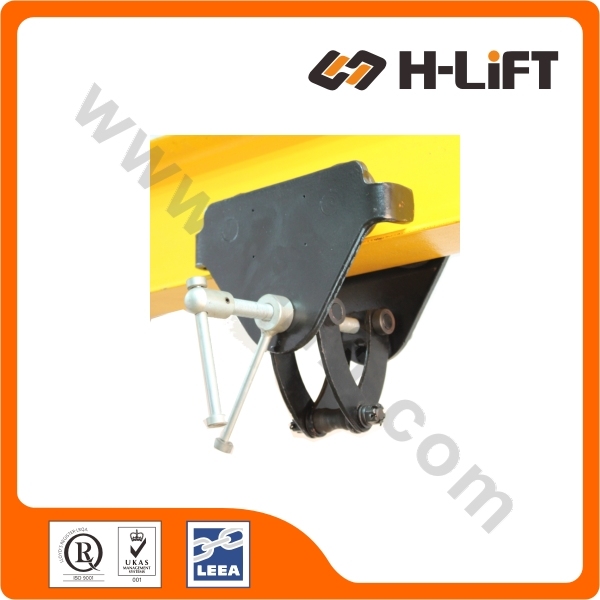

H-Lift Push Trolley Clamp (TCP Type)

The easy installation to any beam makes the TCP Trolley Clamp suitable for affixing and moving hoists, pulleys and loads. It can be adjusted quickly to the beam width by turning the main spindle. Safety is ensured by the special locking lever.

1. Easy fitting to overhead beams for the attachment and transport of loads.
2. Central threaded spindle provides quick adjustment to the required beam width.
3. Locking lever secures the adjustment.
4. Threaded spindle and clevis are zinc plated for added corrosion protection.

Specification of push trolley clamp:

Model		TCP005	TCP010	TCP020	TCP030	TCP050
Capacity	t	0.5	1	2	3	6
Proof Load	kN	7.35	14.7	29.4	44.1	73.5
Min.radius of curve	m	1.1	1.1	1.3	1.4	1.5
Dimensions(mm)	A	260	260	260	345	395
	Bmax	253	256	305	311	393
	C	16	20	20	22	28
	D	325	325	340	345	365
	F	≈3
Beam Width(mm)	M	64-203	64-203	76-203	76-203	100-305
