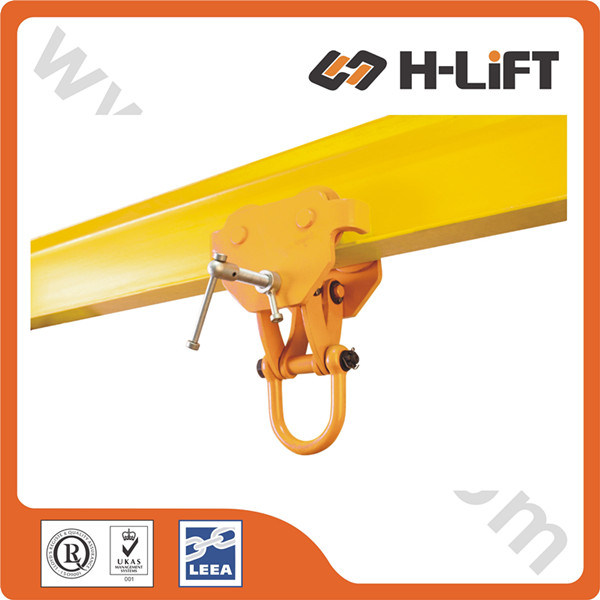

Tcsp Type Push Trolley Clamp with Shackle

H-Lift TCSP Push Trolley Clamp with Shackle / Girder Clamp / Trolley Clamp

Features:

1. Capacity: 0.5T to147T
2. Proof Load: 7.35KN to 147KN
3. Min. Radius of curve: 1.1m /1.3m/1.4m/1.5m/1.9m
4. Beam width: 64-203mm / 76-203mm / 100-305mm / 127-305mm

Characteristic;

1. Adjustable to any beam width, simply by adjusting the number of collars.
2. The wheels are made to fit any shape of beam
3. Robust all steel construction with safety operation.
4. Compact size with light weight.
5. Easy to install with minimum headroom.
6. Super-quick adjustment to any girder width in range.
7. With small or big shackle

Company information:

H-Lift, an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.

Specification of push trolley clamp:

Model	TCSP005	TCSP010	TCSP020	TCSP030	TCSP050	TCSP100
Capacity (t)	0.5	1	2	3	5	10
ProofLoad kN	7.35	14.7	19.4	44.1	73.5	147
Min. Curve Radius (m)	1.1	1.1	1.3	1.4	1.5	1.9
I-beam Width Rangemm	64 ~ 203	64 ~ 203	76 ~ 203	76 ~ 203	100 ~ 305	127 ~ 305
Net Weight kg	6	7	19.5	32	53	96
