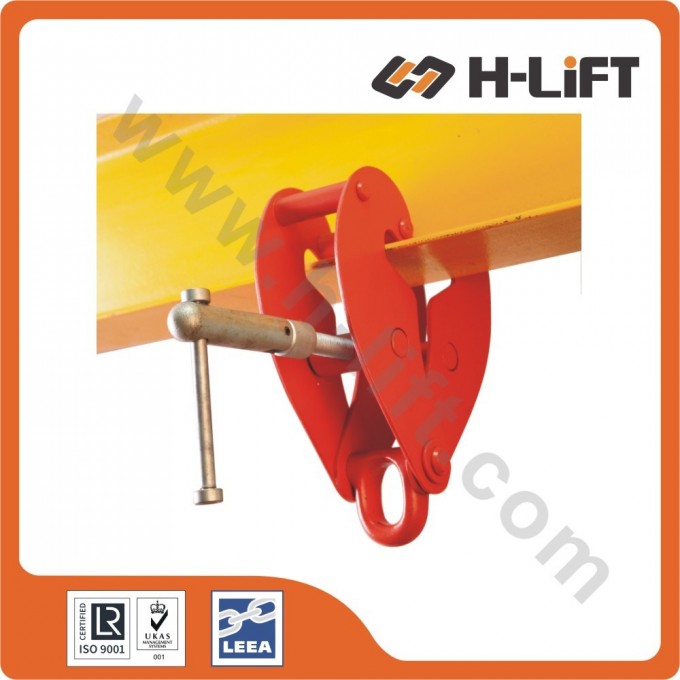

Lifting Beam Clamp with Ring BCR Type:
The easy installation to any beam makes the TCSP Trolley Clamp suitable for affixing and moving hoists, pulleys and loads. It can be adjusted quickly to the beam width by turning the main spindle. Safety is ensured by the special locking lever.
1. Adjustable to any beam width, simply by adjusting the number of collars.
2. The wheels are made to fit any shape of beam
3. Robust all steel co
nstruction with safety operation.
4. Compact size with light weight.
5. Easy to install with minimum headroom.
6. Super-quick adjustment to any girder width in range.
7. With small or big shackle
Precaution:
1. Over loading is strictly forbidden.
2. If the beam clamp is used as lifting machines, while lifting the load, passing or working under a lifting load is strictly.
3. The direction of lifting or towing load must be perpendicular with ba
se I-beam.
4. Leading screw fastener screw etc. Should be reguiarly.
Company information: :
H-Lift, an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.
Specification of beam clamp:
| BEAM CLAMP WITH RING BCR TYPE |
| Model | BC010 | BC020 | BC030 | BC050 | BC100 |
| Capacity (t) | 1 | 2 | 3 | 5 | 10 |
| Proof Load (kN) | 14.7 | 29.4 | 44.1 | 73.5 | 147 |
| Beam Width (mm) | 75-230 | 75-230 | 80-320 | 80-320 | 90-320 |
| Dimensions(mm) | A | max | 240 | 240 | 330 | 330 | 330 |
| B | min | 192 | 192 | 243 | 243 | 259 |
| max | 367 | 367 | 491 | 491 | 501 |
| C | 94 | 102 | 132 | 142 | 180 |
| D | 4 | 6 | 8 | 10 | 12 |
| E | 218 | 218 | 258 | 258 | 293 |
| F | min | 103 | 103 | 157 | 157 | 175 |
| max | 155 | 155 | 223 | 223 | 235 |
| G | 20 | 20 | 47 | 47 | 56 |
| H | 30 | 30 | 45 | 45 | 64 |
Package of beam clamp:
