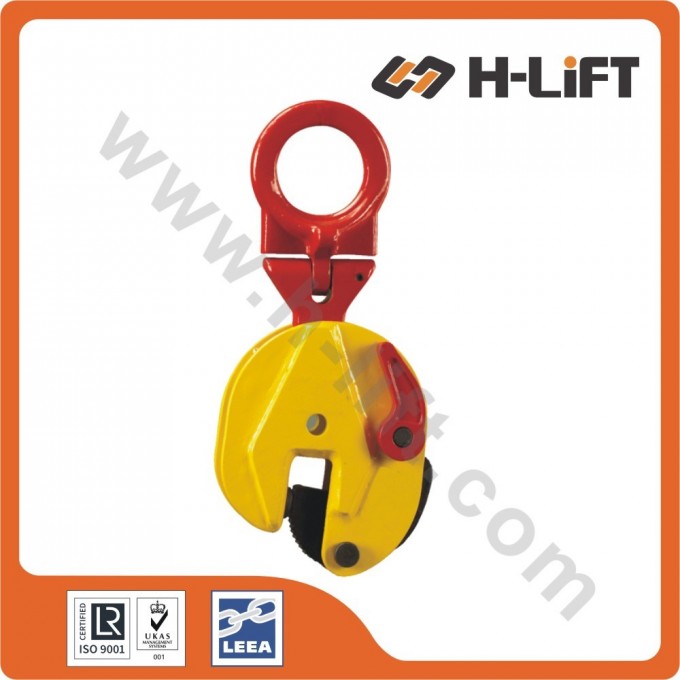

Universal Vertical Lifting Clamp / Plate Clamp 0.8-16 Ton

H-Lift Universal Vertical Lifting Clamp / Plate Clamp ULC-A Type:
1. Capacity of lifting clamp: 0.8T to 16T
2. Jaw opening: 0-16mm to 60-100mm
3. Proof load of the clamp: 15.68KN to 313.6KN


Plate lifting clamps are mechanically operated for smooth, fast and safe handling of plates both horizontally and vertically. These clamps will hold the plates with a friction gripping force, which can be locked through a lever, while holding the plate. Till the lever is unlocked, the plates are not released. They are very safe for handling of plates, with minimum manpower.

Model		ULCA008	ULCA010	ULCA016	ULCA020	ULCA030	ULCA050	ULCA080	ULCA120	ULCA160
Capacity	t	0.8	1	1.6	2	3	5	8	12	16
Proof Load	kN	15.68	19.6	31.36	39.2	58.8	98	156.8	235.2	313.6
Jaw Opening	mm	0-15	0-20	0-20	0-25	0-30	0-50	0-45	50-90	60-100
Dimensions(mm)	A	30	48	60	68	76	76	85	90	100
	B	38	63	74	74	83	90	112	145	155
	C	29	42	53	54	57	65	77	100	110
	D	24	28	29	34	46	50	60	150	160
	E	97	137	160	163	202	230	364	390	425
	F	10	12	16	18	20	20	22	25	36
	G	205	294	356	370	420	480	606	702	730
	H	40	54	56	58	78	90	100	110	121
Net Weight	kg	2	5	7	8	15	23	37	50	65
