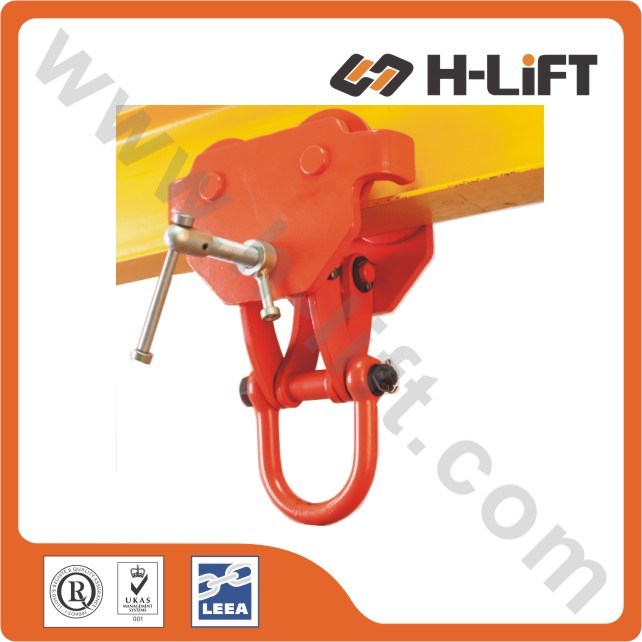

Push Trolley Clamp With Shackle

H-LIFT girder trolley clamp features:
The easy installation to any beam makes the TCSP Trolley Clamp suitable for affixing and moving hoists, pulleys and loads. It can be adjusted quickly to the beam width by turning the main spindle. Safety is ensured by the special locking lever.

1. Adjustable to any beam width, simply by adjusting the number of collars.
2. The wheels are made to fit any shape of beam
3. Robust all steel construction with safety operation.
4. Compact size with light weight.
5. Easy to install with minimum headroom.
6. Super-quick adjustment to any girder width in range.
7. With small or big shackle

Precaution:
Over loading is strictly forbidden.
If the beam clamp is used as lifting machines, while lifting the load, passing or working under a lifting load is strictly.
The direction of lifting or towing load must be perpendicular with base I-beam.
Leading screw fastener screw etc. should be reguiarly.

Model	TCSP005	TCSP010	TCSP020	TCSP030	TCSP050	TCSP100
Rated Load Kg	500	1000	2000	3000	5000	10000
Test Load KN	7.5	15	30	45	75	150
Min. Curve Radius (m)	1.1	1.1	1.3	1.4	1.5	1.9
I-beam Width Range mm	64 ~ 203	64 ~ 203	76 ~ 203	76 ~ 203	100 ~ 305	127 ~ 305
Net Weight kg	6	7	19.5	32	53	96
