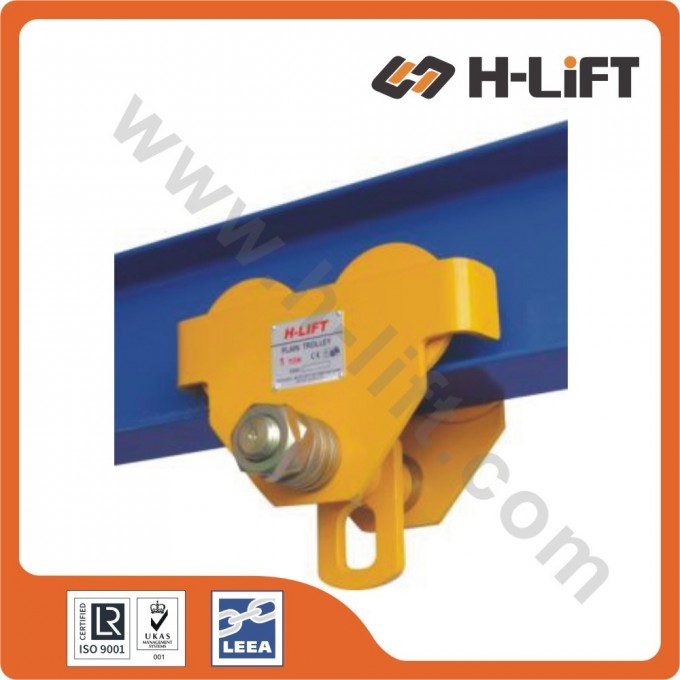

Hand Push Trolley / Manual Push Trolley (PT-CA Type)

H-Lift Hand Push Trolley (PT-CA Type) / Manual Push Trolley

- Capacity of push trolley: 0.5t~10t
- Adjustable beam width (standard): 64-203mm
- Adjustable beam width (extra long): 82-305mm
- Usage: Construction hoist
- Power source: Hand

Specification of push trolley:

Model			PTCA005	PTCA010	PTCA020	PTCA030	PTCA050	PTCA100
Capacity t			0.5	1	2	3	5	10
Proof load KN			7.35	14.7	29.4	44.1	73.5	147
Min. Radius of Curve m			0.9	1	1.1	1.3	1.4	1.7
Dimensions(mm)	A	standard	264	335	353	371	393	438
		extra long	315	437	455	473	490	532
	B		216	260	300	345	390	470
	C		195	239	286	336	393	500
	E		31	32.5	31	35	37	45
	F		≈3
	H		110	136	161	185	220	280
Adjustable Beam Width (mm)	M	standard	64-152	64-203	88-203	102-203	114-203	125-203
		extra long	82-203	102-305	102-305	102-305	108-305	117-305
Net Weight(kg)		standard	8.6	15.4	23	40	50	97
		extra long	9.2	16.6	25.1	43.8	53.8	102.5

Package of push trolley:





Company information:

H-Lift, an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.
