Detailed Description

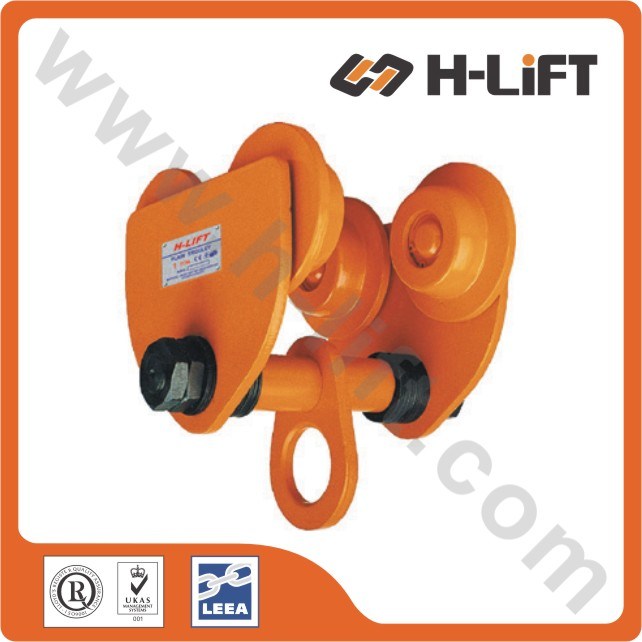

H-Lift Plain Trolley / Push Trolley / Girder Trolley / Beam Trolley PT-B Type
1.push trolley PT-B type
2.Capacity of push trolley&co
lon; 0.5t to 10t
3.Adjustable to any beam width, simply by adjusting the number of collars.
4.The wheels are made to fit any shape of beam
5. High grade sealed ball bearings
Specification of plain trolley&co
lon;
| Model | PTB005 | PTB010 | PTB015 | PTB020 | PTB030 | PTB050 | PTB100 |
| Rated Capacity T | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
| Dimensions mm | A | 208 | 220 | 260 | 260 | 285 | 338 | 362 |
| B | 170 | 206 | 228 | 240 | 282 | 327 | 389 |
| C | 190 | 222 | 236.5 | 267 | 320 | 391.5 | 490 |
| H | 106.5 | 123.5 | 125 | 132.5 | 175 | 190 | 275 |
| I-Beam Width mm | 75-125 | 75-125 | 100-150 | 100-150 | 100-150 | 125-175 | 125-180 |
| Net weight kg | 5 | 8 | 13 | 13 | 25 | 44 | 90 |
Package of push trolley&co
lon;
Product Image
