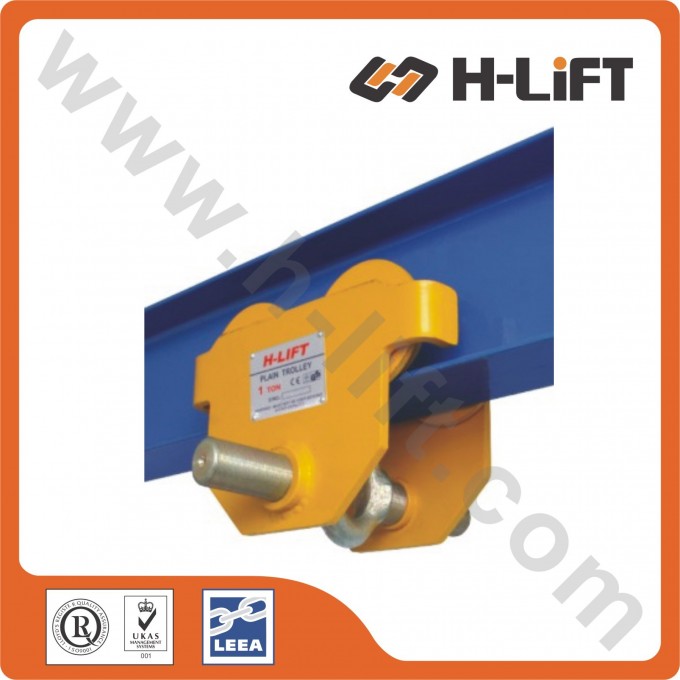

Travel Trolley / Push Trolley PT-F Type

H-Lift PT-FA Type Push Trolley/Hand Trolley:
1. Capacity of push trolley: 0.5t to 5t
2. Adjustable to any beam width, simply by adjusting the number of collars.
3. The wheels are made to fit any shape of beam
4. High grade sealed ball bearings
5. With anti-drop plates.

Selecting the Trolley

Travelling girder trolleys are available in a range of capacities with load bars/suspension eyes to accept hook on blocks or
Built into the block as an integral part. They are available with push/pull, hand chain geared and power operated travel. Select the trolley to be used and plan the lift taking the following into account:

Capacity and type of trolley - load bar/suspension eye or built in block suspension arrangement - push/pull, hand geared or
Power operated travel. Type of block. Track size and profile. Consult the supplier if the trolley is to be used in areas of high
Risk, exposed to the elements, water, steam etc, with hazardous substances or subjected to extremes of temperature.

Storing and Handling Trolleys
Users will often remove blocks for storage leaving the trolley in place. They must be suitably protected from damage and
Corrosion. When removing trolleys for separate storage the following steps should be taken:
Never return damaged trolleys to storage. They should be dry, clean and protected from corrosion. Store trolleys in a dry, clean area protected from damage. Operating chains, pendant power controls etc may be removed, clearly labelled and stored separately to avoid damage. Trolleys should not be dropped or thrown down.
Please let us know the below information before we could offer our price:
1. Capacity of push trolley
2. Your estimated quantity

Company information:

H-Lift is an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting equipment Engineer Association). We supply all kinds of lifting & hoisting equipment, webbing and round sling, ratchet tie down, chain and chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.

Specification of tpush trolley:

PUSH TROLLEY PT-F TYPE
Model	Capacity	I-Beam Width	A	B	C	H	N.W.
	t	mm					kg
PTF005	0.5	50-220	285	198	158	64.5	5
PTF010	1	58-220	285	238	183	66	8.7
PTF020	2	66-220	300	277	208	75	13.9
PTF030	3	74-220	321	324	249	85	23.5
PTF050	5	90-220	354	373	296.5	100	40

Package of push trolley:
