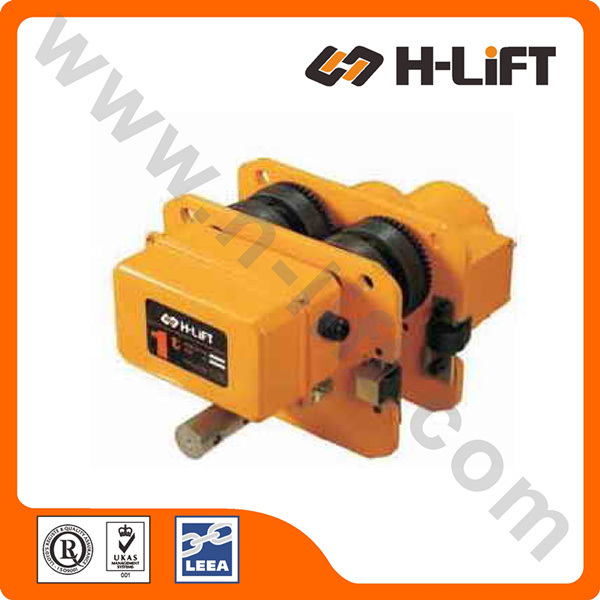

Electric Trolley From 0.5ton to 10ton (ETK Type)

H-Lift 0.5ton to 10ton Electric Trolley (ETK Type)

1. Capacity: 0.5T ~ 10T, usually used with chain hoist
2. Power supply: 1-3 phase, 50/60HZ, 220/380/440V
3. Control voltage: 24V/36V/48V
4. Quickly moves loads along I-Beam with the push of a button,
5. Adjustable trolleys fit various size I-beams and wide flange beams
6. Powered trolleys feature a solenoid-operated traveling brake.
7. Durable power coat finish
8. Can be mounted using lug-mount or hook pin.
9. Trolleycan operate on curve I-beam with a minimum radius of 43-5/16"

Electric trolley is also called electric monorail car, its using function is similar to the hand trolley, but electric trolley saves more labor and more convenient. Electric trolley is motor as the power, four-wheel walking in the range of I-Beam. It can combine electric hoist and other hoisting tools to form one electric transportation driving, and this driving can be widely used in factories, mine, warehouses for installation, dispatching goods, equipment maintenance.
Electric trolley mainly is used in U Power, Ship, Automobile Manufacture, Construction, Highway, Bridges, metallurgy, Mining, Slope Tunnel, infrastructural project of mechanical equipment


Company Information:

H-Lift, an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.

Specification of electric winch:

Model		ETK005	ETK010	ETK020	ETK030	ETK050	ETK075	ETK100
Capacity	t	0.5	1	2	3	5	7.5	10
Travelling Speed	m/min	21 or 11
Trolley Motor	kw	0.4	0.4	0.4	0.75	0.75	0.75	0.75
Power Supply		220V-460V, 3Phase, 50/60Hz
I-Beam	mm	52-153	52-153	82-178	100-178	100-178	100-178	150-200
Dimensions mm	A	315	315	325	340	400	400	500
	B	212	212	220	250	291	291	370
	R	142	142	142	142	142	142	142
	T	231	231	231	231	231	231	231
	I	Ø31	Ø31	Ø36	Ø43	Ø54	Ø54	Ø70
