Detailed Description

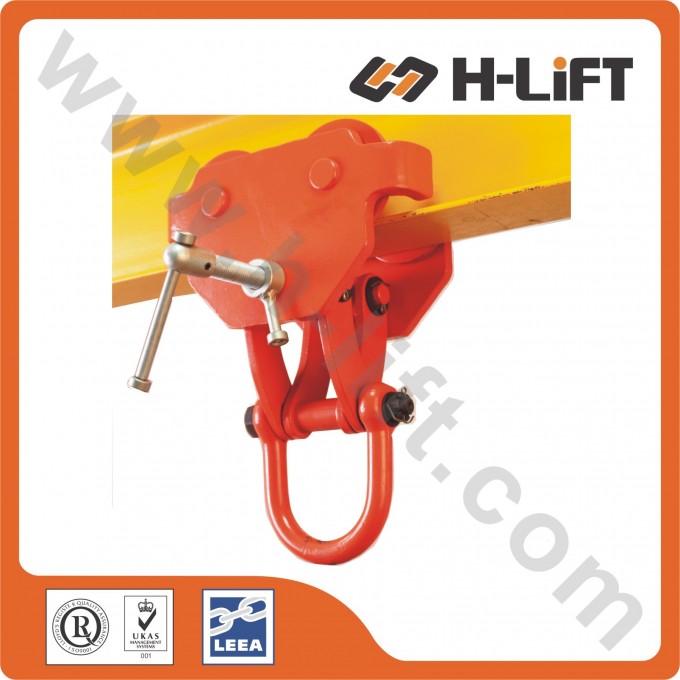

H-Lift Plain Push Trolley Clamp With Shackle&co
lon;
1. Capacity of trolley&co
lon; 0.5T to 10T
2. Proof Load&co
lon; 7.35KN to 147KN
3. Min. Radius of curve&co
lon; 1.1 to 1.9
4. Beam Width&co
lon; 64-203 to 127-305
5. Net Weight&co
lon; 6KG to 96KG
The easy installation to any beam makes the TCSG Trolley Clamp suitable for affixing and moving hoists, pulleys and loads. It can be adjusted quickly to the beam width by turning the main spindle. Safety is ensured by the special locking lever.
Characteristics of Push Trolley Clamp With Shackle TCSP Type&co
lon;
1. The wheels are made to fit any shape of beam.
2. Robust all steel co
nstruction with safty operation.
3. Compact size with light weight.
4. Easy to install with minimum headroom
5. Super-quick adjustment to any girder width in range.
6. With small or big shackle.
Company information&co
lon;
H-Lift is an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting equipment Engineer Association). We supply all kinds of lifting & hoisting equipment, webbing and round sling, ratchet tie down, chain and chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.
Specification of push trolley&co
lon;
| PUSH TROLLEY CLAMP WITH SHACKLE TCSP TYPE |
| Model | TCSP005 | TCSP010 | TCSP020 | TCSP030 | TCSP050 | TCSP100 |
| Capacity | t | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Proof Load | kN | 7.35 | 14.7 | 29.4 | 44.1 | 73.5 | 147 |
| Min.radius of curve | m | 1.1 | 1.1 | 1.3 | 1.4 | 1.5 | 1.9 |
| Dimensions(mm) | A | 174 | 174 | 280 | 345 | 395 | 470 |
| B | 263-324 | 263-324 | 339-387 | 374-438 | 450-528 | 546-611 |
| C | 105 | 105 | 111 | 127 | 135 | 160 |
| D | 16 | 16 | 22 | 27 | 35 | 40 |
| E | 25.4 | 25.4 | 25.4 | 26 | 81 | 60 |
| F | ≈ 3 |
| G | 336 | 340 | 340 | 345 | 465 | 488 |
| Beam Width (mm) | M | 64-203 | 64-203 | 76-203 | 76-203 | 100-305 | 127-305 |
| Net Weight | kg | 6 | 7 | 19.5 | 32 | 53 | 96
|
