Detailed Description

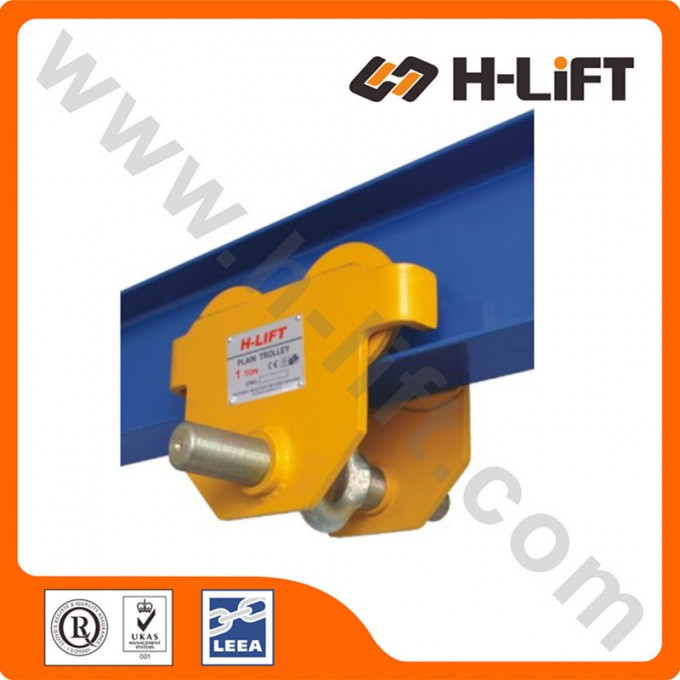

H-Lift Push Trolley PT-FA Type
1. Model of push trolley&co
lon; PTFA
2. Capacity of push trolley&co
lon; 0.5t-5t
3. Proof Load of push trolley&co
lon; 7.35t/14.7t/29.4t/44.1t/73.5t
4. Min. Radius of Cureve&co
lon; 0.9m/1m/1.2m/1.3m/1.4m
5. Adjustable Beam Width(standard)&co
lon; 55-220mm / 58-220mm / 66-220mm / 74-220mm /90-220mm
6. Adjustable Beam Width(extra long)&co
lon; 160-305mm
7. There are other types available to us. Such as push trolley PT-CA type, and gear trolley GT-CA type, gear trolley GT-FA type, push troley clamp TCP type, and push trolley clamp with shackle TCSP type
Company information&co
lon;
H-Lift, an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.
Specification of push trolley&co
lon;
| PT-FA TYPE |
|
|
|
|
|
|
|
| Model | PTFA005 | PTFA010 | PTFA020 | PTFA030 | PTFA050 |
| Capacity t | 0.5 | 1 | 2 | 3 | 5 |
| Proof load KN | 7.35 | 14.7 | 29.4 | 44.1 | 73.5 |
| Min. Radius of Curve m | 0.9 | 1 | 1.2 | 1.3 | 1.4 |
| Dimensions(mm) | A | standard | 292 | 300 | 310 | 324 | 329 |
| extra long | 377 | 385 | 395 | 409 | 414 |
| B | 225 | 252 | 300 | 360 | 392 |
| C | 173 | 188 | 226 | 289 | 313 |
| E | 33 | 31 | 32 | 46 | 47 |
| F | ≈3 |
| K | 25 | 30 | 40 | 48 | 60 |
| L | 30 | 35 | 47 | 58 | 70 |
| Adjustable Beam Width (mm) | M | standard | 55-220 | 58-220 | 66-220 | 74-220 | 90-220 |
| extra long | 160-305 | 160-305 | 160-305 | 160-305 | 160-305 |
| Net Weight(kg) | standard | 8.2 | 10.3 | 30.7 | 30.7 | 42.4 |
| extra long | 8.6 | 10.8 | 31.9 | 31.9 | 43.9 |
Package of plain trolley&co
lon;
