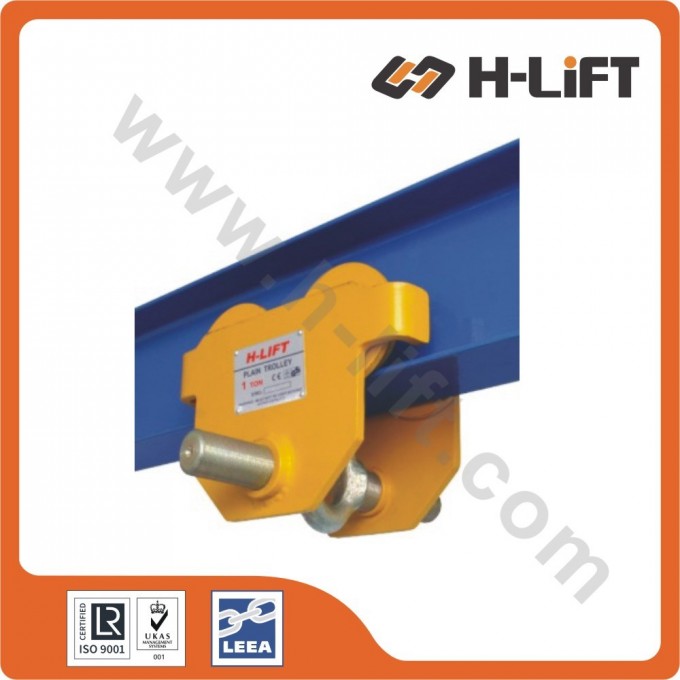

Hand Plain Trolley / Push Trolley (PT-FA Type)

H-Lift Hand Plain Trolley / Push Trolley (PT-FA Type)

- Capacity of push trolley: 0.5t~5t
- Adjustable beam width (standard) of push trolley: 55-220mm
- Adjustable beam width (extra long) of push trolley: 160-305mm
- Usage of push trolley: Construction hoist
- Power source: Hand


Specification of plain trolley:

Model			PTFA005	PTFA010	PTFA020	PTFA030	PTFA050
Capacity (t)			0.5	1	2	3	5
Proof Load (t)			7.35	14.7	29.4	44.1	73.5
Min. Radius of Curve (m)			0.9	1	1.2	1.3	1.4
Dimensions (mm)	A	standard	292	300	310	324	329
		extra long	377	385	395	409	414
	B		225	252	300	360	392
	C		173	188	226	289	313
	E		33	31	32	46	47
	F		≈ 3
	K		25	30	40	48	60
	L		30	35	47	58	70
Adjustable Beam Width (mm)	M	standard	55-220	58-220	66-220	74-220	90-220
		extra long	160-305	160-305	160-305	160-305	160-305

Specification of push trolley:
