Detailed Description

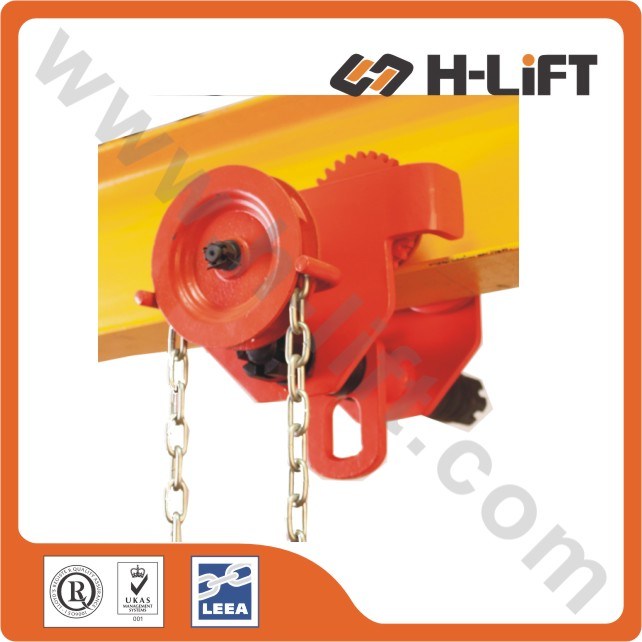

Features of Gear Trolley / Geared Trolley / Geared Travel Trolley / Beam Trolley GT-CA type
1.Geared trolley GT-CA type
2.Capacity of geared trolley&co
lon; 0.5t to 10t
3.Adjustable to any beam width, simply by adjusting the number of collars.
4.The wheels are made to fit any shape of beam
5. High grade sealed ball bearings
6.With anti-drop plates.
Specification of gear trolley&co
lon;
| Model | GTCA010 | GTCA020 | GTCA030 | GTCA050 | GTCA100 |
| Capacity |
| t | 1tx3m | 2tx3m | 3tx3m | 5tx3m | 10tx3m |
| Proof Load |
| kN | 14.7 | 29.4 | 44.1 | 73.5 | 147 |
| Effort Required to Lift Rated Load | N | 44 | 80 | 65 | 90 | 195 |
| Min.radus of curve | m | 1 | 1.1 | 1.3 | 1.4 | 1.7 |
| Dimensions(mm) | A | standard | 390 | 400 | 430 | 444 | 489 |
| extra long | 492 | 502 | 532 | 544 | 584 |
| B | 260 | 300 | 345 | 390 | 470 |
| C | 239 | 286 | 336 | 393 | 500 |
| E | 32.5 | 31 | 35 | 37 | 45 |
| F | ≈3 |
| H | 136 | 161 | 185 | 220 | 280 |
| Adjustable Beam Width (mm) | M | standard | 64-203 | 88-203 | 102-203 | 114-203 | 125-203 |
| extra long | 102-305 | 102-305 | 102-305 | 108-305 | 117-305 |
| Net Weight (kg) | standard | 19.9 | 28.5 | 46 | 57 | 103 |
| extra long | 21.1 | 30.6 | 49.8 | 60.8 | 108.5 |
Package of gear trolley&co
lon;
