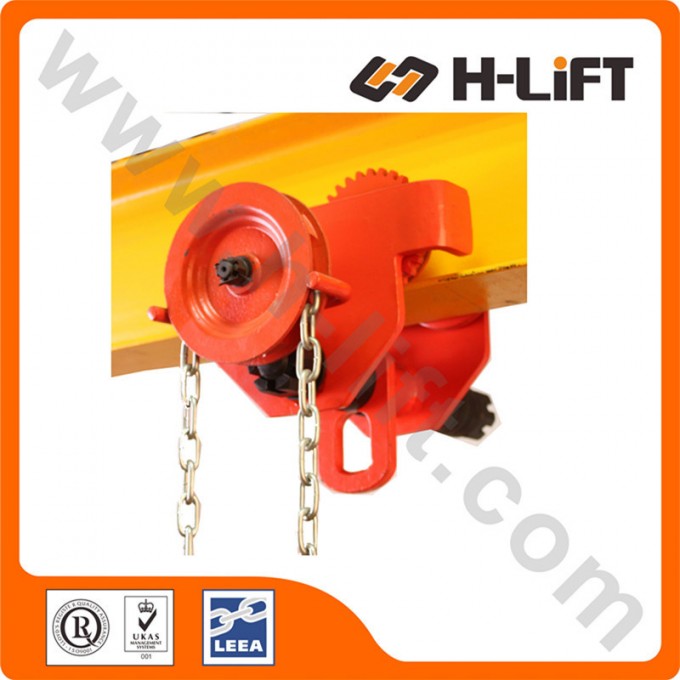

H-Lift Gear Trolley, plain trolley GT-CA Type
1. Capacity of gear trolley&co
lon; 1t~10t
2. The standard operating length of plain trolley&co
lon; 3m; The other length is available.
3. Adjustable beam width (standard) of gear trolley&co
lon; 64mm~203mm
4. Adjustable beam width (extra long) of gear trolley&co
lon; 102mm~305mm
5. Adjustable to any beam width, simply by adjusting the number of collars.
6. The wheels are made to fit any shape of beam
7. High grade sealed ball bearings.
8. With anti-drop plates.
9. Effort Required to lift rated load&co
lon; 44N to 195N
10. Min. Radius of Curve&co
lon; 1m to 1.7m
11. Other types of trolley are also available&co
lon; Such as push trolley, gear trolley
Company information&co
lon;
H-Lift, an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.
Specifcation of gear trolley&co
lon;
| Model | GTCA010 | GTCA020 | GTCA030 | GTCA050 | GTCA100 |
| Capacity (t) | 1t x 3m | 2t x 3m | 3t x 3m | 5t x 3m | 10t x 3m |
| Proof Load (kN) | 14.7 | 29.4 | 44.1 | 73.5 | 147 |
| Effort Required to Lift Rated Load (N) | 44 | 80 | 65 | 90 | 195 |
| Min. Radius of Curve (m) | 1 | 1.1 | 1.3 | 1.4 | 1.7 |
| Dimensions (mm) | A | standard | 390 | 400 | 430 | 444 | 489 |
| extra long | 492 | 502 | 532 | 544 | 584 |
| B | 260 | 300 | 345 | 390 | 470 |
| C | 239 | 286 | 336 | 393 | 500 |
| E | 32.5 | 31 | 35 | 37 | 45 |
| F | ≈ 3 |
| H | 136 | 161 | 185 | 220 | 280 |
| Adjustable Beam Width (mm) | M | standard | 64-203 | 88-203 | 102-203 | 114-203 | 125-203 |
| extra long | 102-305 | 102-305 | 102-305 | 108-305 | 117-305 |
