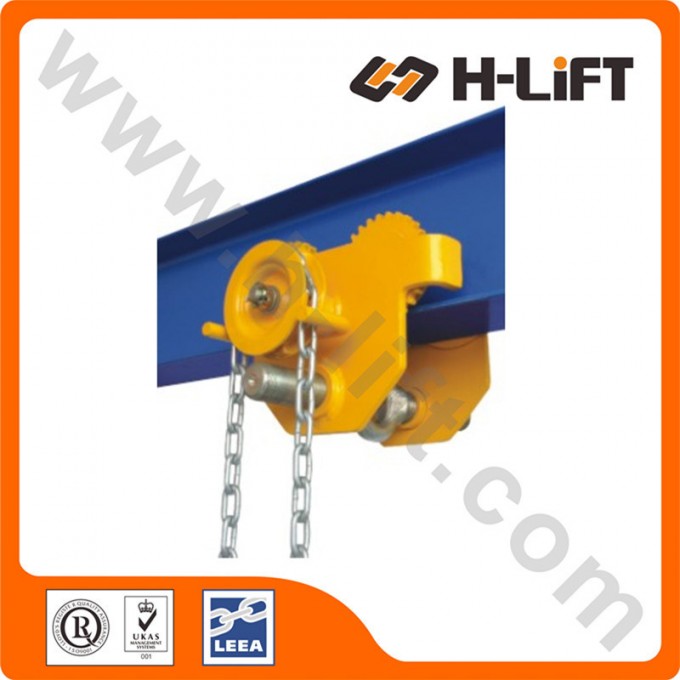

Gt-Fa Type Geared Trolley / Beam Trolley / Manual Gear Trolley

H-Lift Gear Trolley GT-FA Type

1. Capacity of gear trolley: 0.5t~5t
2. The standard operating length: 3m; And other length is available.
3. Adjustable beam width (standard) of gear trolley: 55mm~220mm / 58mm-220mm/66mm-220mm /
74mm-220mm / 90mm-220mm
4. Adjustable beam width (extra long) of gear trolley: 160mm-305mm
5. Adjustable to any beam width, simply by adjusting the number of collars.
6. The wheels are made to fit any shape of beam
7. High grade sealed ball bearings.
8. With anti-drop plates.

Company information

H-Lift, an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.

Specification of gear trolley:

GT-FA TYPE
Model			GTFA005	GTFA010	GTFA020	GTFA030	GTFA050
Capacity t			0.5t x 3m	1t x 3m	2t x 3m	3t x 3m	5t x 3m
Proof load KN			7.35	14.7	29.4	44.1	73.5
Effort Required to LiftRated N			45	55	100	75	120
Min. Radius of Curve m			0.9	1	1.2	1.3	1.4
Dimensions(mm)	A	standard	292	300	314	350	359
		extra long	377	385	395	109	414
	B		225	252	300	360	392
	C		173	188	226	289	313
	E		33	31	32	46	47
	F		≈3
	K		25	30	40	48	60
	L		30	35	47	58	70
Adjustable Beam Width (mm)	M	standard	55-220	58-220	66-220	74-220	90-220
		extra long	160-305	160-305	160-305	160-305	160-305
Net Weight(kg)		standard	11.4	14.7	21.8	36.7	48.5
		extra long	11.8	15.2	22.6	37.9	50
