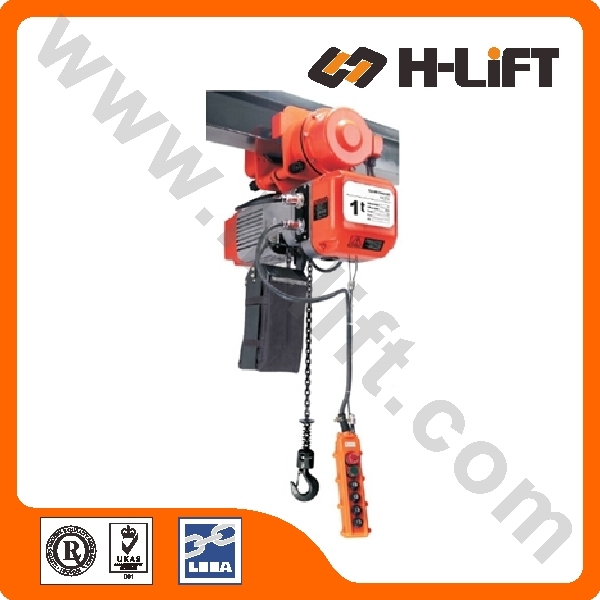

Electric Chain Hoist / Motorized Trolley with Hoist

H-Lift Electric Chain Hoist / Motorized Trolley with Hoist

The combination of electric chain hoists EHB type and electric trolley ETA type.

1. With suspension hook, push, geared or electric trolley.
2. Standard lift height 3m, control cable 2.5m.
3. Operating voltage 220-440V, 50/60Hz, 3 phase
4. Low voltage control 24V is standard. 36V, 48V is optional.
5. High efficient energy-saving motor, asbestos free brake system.
6. High tensile aluminum alloy cover is light in construction, offers strong corrosive resistance.
7. Top and bottom hooks are fitted with safety latches as standard.
8. Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
9. Strong chain bucket.
10. Super strong surface hardened chain.
11. Limit switch devices fitted at both top & bottom ends, switch off power automatically to pvent load chain from running out.
12. The unique friction clutch overload protection, which protects the unit from overloading.
13. High quality electric components with safety protection.

Model			EHBT0025	EHBT005	EHBT010	EHBT020	EHBT030	EHBT050
Capacity		t	0.25	0.5	1	2	3	5
Lifting speed		m/min	7.0/2.3	7.6/2.5	5.0/1.7	2.5/0.85	6.0/2.0	3.0/1.0
Hoist Motor		kw	0.9/0.3	0.9/0.3	1.1/0.37	1.1/0.37	3.0/1.0	3.0/1.0
Work Group			M6	M5	M5	M5	M4	M4
Standard Lift		m	3	3	3	3	3	3
Load Chain			5X15	6.3X19	8X24	8X24	11.2X34	11.2X34
Load Chain Falls			1	1	1	2	1	2
Proof Load		kN	3.06	6.13	12.25	24.5	36.75	61.25
Traveling Speed		m/min	15/5	15/5	15/5	15/5	18/6	12/4
Traveling Motor		kw	0.3/0.1	0.3/0.1	0.3/0.1	0.3/0.1	0.4/0.13	0.4/0.13
Beam Range		mm	74-124	74-124	74-124	74-124	102-152	102-152
Dimensions(mm)	A		142	142	142	185	185	240
	B		102	102	102	159	165	110
	C	Single Speed	329	329	329	329	358	358
		Dual Speed	334	334	354	354	471	471
	C	Single Speed	273	273	273	273	336	336
		Dual Speed
	F		270	270	270	270	330	334
	J		650	650	650	650	810	850
	K		31	31	38	45	45	61
	M		170	170	170	170	188	190
	N		135	135	135	135	141	143
