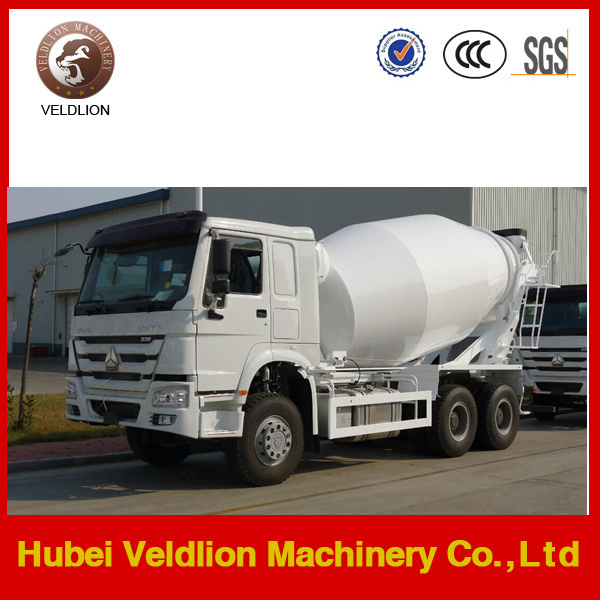

Sinotruk HOWO 6*4 Concrete Cement Mixer Truck
--------------------------------------------------------------
*Products--100% First Class!*
*Transportation--100% Convenience, Efficient!*
*Services--Obtaining asatisfied smile!*
Cement mixer truck has three type: wet material type, material type and semidry material type according to concrete water content in the mixer truck shipment to points. It can be shipped by mixing plant (station) production of concrete or mixed according to the ratio of aggregate (sand and gravel), cement and water. During transport and segregation, it keeps slowly stirring wet material constantly to pvent the initial setting of concrete.
»I.Product Describution:
Manufacturer:Hubei Veldlion Machinery Co.,Ltd.
Main Feature of the mixertruck:
1.Control system:
Adopt three-point control mode, by control bar on both rear sides and in-cab device to control the drum easily and conveniently.
2.Hydraulic driving system :
Adopt international top brand in hydraulic driving filed, such as Germany, Italian, American brand with integral structure ,excellent performance, to meet customers' various special need.
3.Water supply system:
Have various volume water tanker, can feed the water mixing and cleaning, enlarged water pipe and various feeding solution. Can convenient customer, water feeding solution can use air pssure ,reducer pump ,electronic pump, etc, can meet different requirement.
4.Blade anti-wear protection:
Modified logarithmic helical curve type of blade .In light of special need of wear resistance, all blades are mounted with anti-wear protection parts, not only prolonging vehicle life, but also synchronizing the wear of drum and blades.
5.Blade process:
Blades are made of special cold-forming pssing molder, welded with drum body by new welding process without obvious trance.
6.Humanization design:
Lighting device: human-oriented large power tail working lamp at rear part, not only meeting special requirement for night working ,but also ensuring safety of personnel and vehicle.
Step area: adopt pssed steel and attractive appearance, reasonable handrail ensuring safety.
Self-locking in cab, to pvent from mistake operation and ensure security.
Smart equipment: remote operation, water metering, tank mouth seal etc.
| The Parameters Of Chassis | ||||
| Chassis | ZZ1257 | |||
| Cab | HW76 Flat cab | |||
| Drive type | 6x4,RHD | |||
| Vehicle Main Dimensions | L×W×H(mm) | 9040x2496x3850mm | ||
| Wheel base(front/rear) (mm) | 3800+1400 | |||
| Min. turning circle (m) | 17 | |||
| Min. ground clearance (mm) | 314 | |||
| Max. speed (km/h) | 77 | |||
| Approach/Departure angle | 20/18 | |||
| Weight in KGS | Complete kerb mass (kg) | 13220 | ||
| G.V.W.(kg) | 25000 | |||
| Engine | Model | WD615.69 | ||
| Horse Power(HP) | 336 HP | |||
| Emission Standard | Euro II | |||
| Gearbox | HW19710SINOTRUK 10 speed manual type transmission | |||
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance. | |||
| Tire | 12.00R20 radial tires | |||
| Steering | ZF8118 power steering, hydraulic steering with power assistance. | |||
| Front axle | 1 x HF9, 9 ton axle load | |||
| Rear axle | 2 x HC16 ,2x16ton axle load | |||
| Color and printing | White | |||
| Hydraulic System | Italy TOP/PMP reduction gears/ Eaton motor/Eaton pump | |||
| Mixing Drum | ||||
| Geometric Volume | 13.5 M³ | Mixing Volume | 8 M³ | |
| Stuffing Volume | 58.70% | Feeding Speed(M³/min) | ≥3 | |
| Discharging Speed(M³/min) | ≤2 | Discharge Residue(%) | ≤0.2 | |
| Slump Scope(mm) | 50-220 | Drum Speed(Min) | 0-18 | |
| Obliquity | 12° | Drum Materials | carbon steel | |
