Sinotruk HOWO Heavy Duty Customized Cement Concrete Mixer Truck
Sinotruk HOWO Heavy Duty Customized Cement Concrete Mixer Truck

Sinotruk HOWO Heavy Duty Customized Cement Concrete Mixer Truck

Categories: Truck , Concrete Mixer Truck
FOB Price:60000.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:824 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Company Profile
Capital:US$ 0 Million
Employees: 1000-3000人 People
Detailed Description
Sinotruk HOWO Heavy Duty Customized Cement concrete mixer Truck

Truck Specification
Truck model CLW
Driving Type 8*4 Right hand drive
Max Speed (km/h) 80
Overall dimension(mm) 10080*2496*3980
GVW(kg) 31000
Mass in working order(kg) 16700
Wheelbase(mm) 1800+3200+1350
F/R overhang(mm) 1500/2380
Approach/Departure Angel 16/19
Tire 12.00R20 (12+1)
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box HW19710 (10 Front gears+2 rear gears)
Bridge Front axle HF9
Rear axle HC16
Engine Model WD615.47
Fuel Type Diesel fuel
Type Water-cooled .four-stroke, six-cylinder ,direct injection,
Exhaust(ml) 9726
Max output power(hp) 371hp
Max torque/rotate speed(N.m/rpm) 1560/1200-1500
Brakingsystem Service Brake Compressed air brake
Park Brake Spring energy
Auxiliary brake engine exhaust brake
Eletric system 24v
Drum Description
Mixing volume 18m3 Loading Coefficient 66.7%
Charging speed ≥3 m3/min Discharging Speed ≥1.3 m3/min
Mixing speed 0-16rpm Residual rate ≤0.5%
Inclination angle 16±0.5° Oil tank working temperature 50ºC-70ºC
Drum material Disk End 8mm/16MnR Water tank volume According to mixer tank
Slump More than 12

Product Image

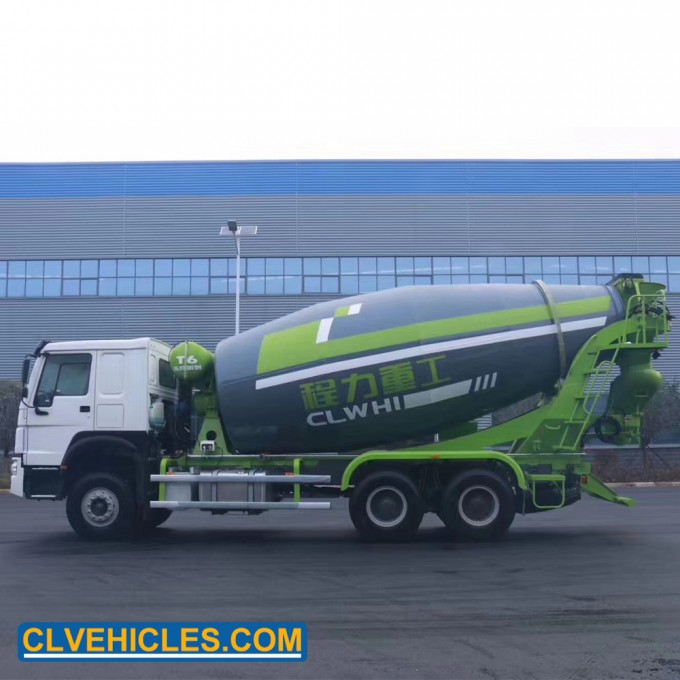

Sinotruk HOWO Heavy Duty Customized Cement Concrete Mixer Truck Image1
