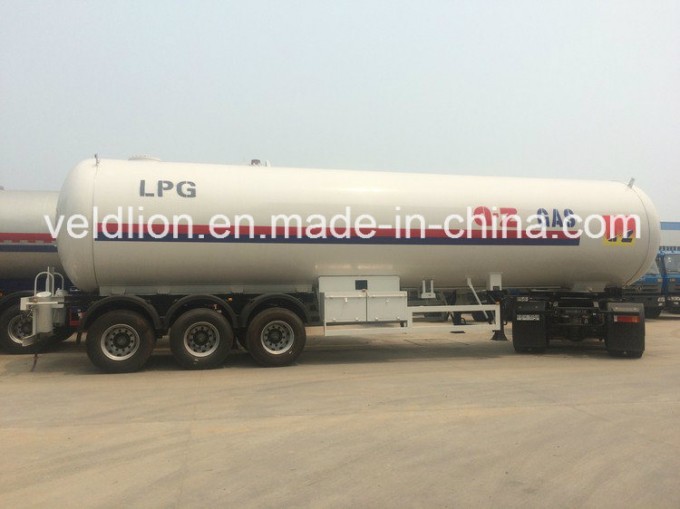

High Performance 58.5m3 Propane Tri-Axle LPG Tank Trailer

High performance 58.5m3 propane tri-axle lpg tank trailer

1. LPG tank is our most advantage key products which rankTop 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from usrun very well with10-20 yearsuse life.


2. Our Advantages on LPG tanker truck semi trailers:
(1) Quality 100% guaranteed.ALL our trucks have got ISO 9001-2008, CCC and B&V certificates. Many trucks have passed SGS inspection. Chassis and spare parts always come from the original manufacturers with their product codes and anti-counterfeiting labels. ALL our suppliers have passed the B&V, SGS and ConTECNA qualification.
(2) Experienced.We have 11years truck wholesaler experience. Our performance has won national affirmation.
(3) Price reasonable.Our company has extensive resources so we are sure to offer competitive price for you.
(4) Reliable supplyer.We sell trucks throughout the country and export to Vietnam, Korea, Laos, myanmar, Malaysia, Congo, Ethiopia, Sudan, el Salvador, Iraq, New Zealand, Russia, Mongolia, kazakhstan, Sudanetc more than50 countries and regions all over the world.


3. Detailed parameters of LPG tanker truck semi trailers:

Basic information
Truck trailer model	VLD9401
Wheelbase	mm	7160+1310+1310
Front track	mm	-
Rear track	mm	1840/1840/1840
Total mass	T	40
Truck size	m	13000×2490×3980
Curb weight	T	24.7
Loading mass	T	15.3
Steel spring NO	Pcs	-/7/7/7
Axles information
Axles brand	/	BPW
Axles NO	Pcs	3
Axles loading	kg	12000
Legs information
Legs brand	/	Jost
Legs loading	kg	28000
Tyreinformation
Tyres No	Pcs	12+1
Tyretype	/	12 tubeless
Truck LPG tanker information
Tanker volume	L	58800
Tanker material	/	Carbon stel Q345R
Tanker thickness	mm	12.7
Tanker diameter	mm	2490
Tanker design pssure	Mpa	1.77
Tanker temprature		-19 to 50
1.Single out the solution 2.Bilateral Handling 3.Double valve box 4.Single Kit 5.Safety valve 6.Thermometer 7.Pressure gauge 8.Emergency shut-off valve 9.Fire extinguishers 10Anti-static grounding tape
