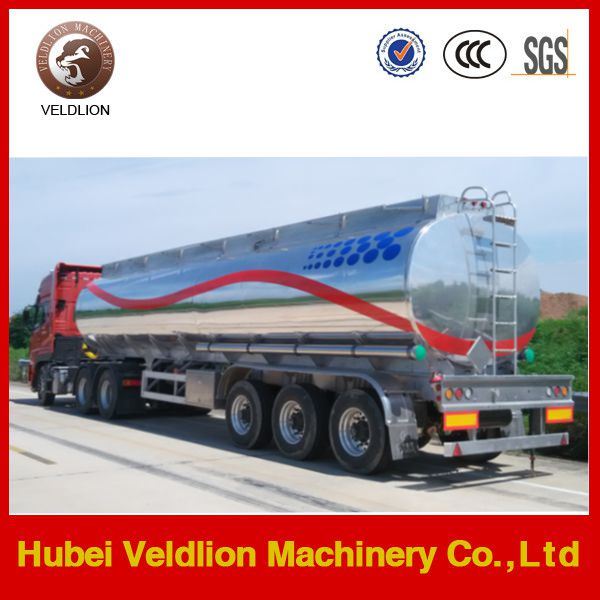

45000L Aluminum Oil Tank Semi Trailer 3 Axle Air Suspension

Oil Tank TruckisalsonamedFuelTanktruck, fuel tanker truck, fuel transport truck…. It's widely used in daily life. It can carry Diesel, Gasoline, coal tar, Lubricating oil, edible cooking oil, crude oil; heavy fuel oil and so on. Therefore, oil tank truck has lots of multifunction and usage.


»I.Product Description:

Manufacturer:Hubei Veldlion Machinery Co.,Ltd.
Our company is a professional FUEL TRUCK manufacturer for10 years
we can provide fuel transportation truckfrom 3m3 to 40m3
We also provide FUEL semi trailer from 20000L to 60000L

Performance characteristics

1.Media for carrying:gasoline,diesel,heavy oil,alcohol,edible oil,etc.
2.Tank material:carbon steel,stainless steel,aluminum alloy,pure aluminum,rubber-lined
3.Tank shape:round square,oval,round
4.Pump:self-priming pump,gear pump,chemical pump,stainless steel pump
5.Oil meter:single count,double count,tax control dispenser
6.Compartment:maybe divided into different spaces for carrying different oil products.
7.Safety:technology of accident pvention and emeregency protection.
8.Environmental protection:provide totally-enclosed loading and unloading as well as remote
intelligent control technology.
9.High efficiency:maximum loading capacity and lightweight technology
10.Standard:synchronize with European and American technology and modular design




»II. Fuel TankTruck Specification :

The parameters of chassis
Overal Dimension (mm)	Length	11900
	Width	2500
	Height	3650
Rating Weights (kg)	Curb Weight	7000
	Payload	33000
	Total Weight	40000
Axle	3 sets of Fuwa axles	Wheelbase	6400+1320+1320mm
Chassis Material:	Aluminum	Suspension:	Air
Water tank:	200liter	Landing gear:	Two Speed Manual Operation
Kingpin:	2'' bolt-in king pin	Reverse buzzer	Equipped
Tire	385/65 R22.5 Aluminum Rim	Electrial	24 volt
Pneumatic brake system	Emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; One unit of WABCO RE 6 relay valve; Six units of T30/30 chamber; one unit of 40L air tank ;
Main beam	Heavy duty and extra durability designed; Opting for Aluminum material,welded by automatic Submerged-Arc processes
Safety system	Vapor recovery system, overfill protection system,emergency cut--‐off switch, anti--static system &pneumatic control system
The parameters of Tank
Tank material:	Aluminum GRADE 5454H32	Design standar:	UN ADR
Tank Dimension(mm)	11500x2500x1940	Shape	Square Round/ Ellipse
Valid Volume (m3)	42,000 Liters	Tank thickness	5.5-7.0 mm
Spoil box	Zinc galvanized type
Manhole cover	500mm manhole cover .2 sets with 2 breather valve.
Discharge Pipe	4seamless steel tube
Discharge valve	4disc valve

Remark:

1. Tank materials: Optional for carbon steel, stainless steel, aluminium alloy, plastic-lined steel or FRP;

2. Tank shape: Optional for round square, oval, and round;

3. Functions: The tank can be separated several compartments to load different oil or chemical varieties .and can be designed as as pump-in and pump-out through measurement;

4. fuel dispenser :Optional single counting, double counting, and tax control fuel dipenser.

5. Oil Pump: According to the purpose of tankers, you can choose centrifugal pumps, gear pump, copper gear pump





»III.Our Advantages

Why choose us?

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity

Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.

Our services
1.We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2.Free consultation forever.When you meet small problems, professional advices can help you to solve them soon.
3.One year free cost warranty.
4.Spare parts forever.When you need spare parts, we can send them to you immediately.



»IV.Company Introduce:


Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is abig manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.

Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit amount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.





» V.Packaging &Shipping

Thick wax polished on products before shipping to protect.
Use container, RORO/bulk ship or others as your requirement.
We provide transportation insurance to guarantee the new and great condition of products for customers
