Dongfeng 12 Tons Refrigerated Truck Bodies

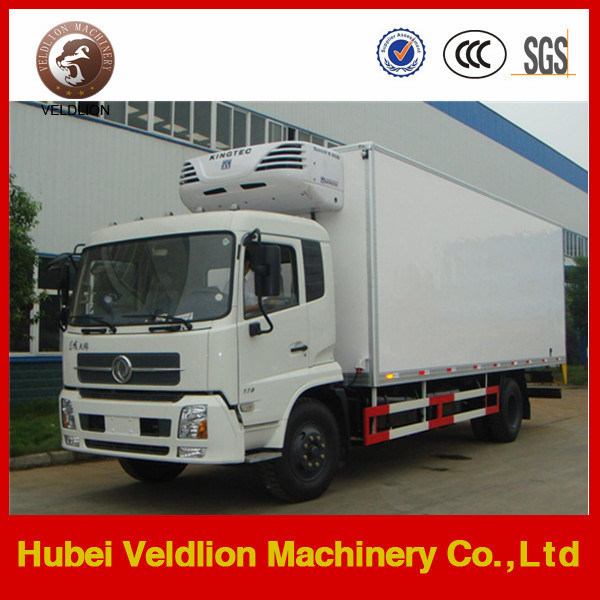

1. 4x2 Dongfeng refrigerator truck, Freezer Truck
(1) Truck specification

Product model and name	Refrigerator truck
Gross weight(Kg)	11900	Drive type	4×2
Payload(Kg)	4850	Overall dimension(mm)	8550x2500X3850
Curb weight(Kg)	6855	Cab seats	3
Approach/departure angle(°)	12/20	Front/rear hang(mm)	1430/2420
Axle No.	2	Wheelbase(mm)	4700
Axle load(Kg)	4400/7500	Max speed(Km/h)	90
Chassis specification
Chassis model	DFL1120B	Manufacturer	Dongfeng Co.,Ltd
Brand name	Dongfeng	Dimension(mm)	8290×2370×2760
Tyre specification	9.00-20	Tyre No.	6
Steel spring number	7/9+6	Front track base(mm)	1880
Fuel type	Diesel	Rear track base(mm)	1800
Emission standard	Euro 3	Transmission	6 forward gear,1 reverse gear
Cab	D530 flat one and half row flat cab, electric window regulator, central control door lock, PXD-B dashboard with air condition
Engine manufacturer	Dongfeng Cummin	Engine model	B170 33
Displacement(ml)	5900	Horsepower	125(170HP)
Performance
Van body size	6000x2250X2300	Load capacity(TON)	10 ton
Lowest refrigeration temperature(ºC)	-18 Centigrade

(2) We can offer various kinds of refrigerated truck with different brands like as the Dongfeng, Foton, IZUSU, SINOTRUK, FAW, SHACMAN, JAC, JMC,and etc . Drive model : 4x2 , 6x4, 8x4, Loading capacity from 2ton to 30tons.

2. Shipping photos
By roro ship or bulk ship

3. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized fire truck manufacturer.We arespecialized inthe production of a variety of special-purpose vehicles.
Creatingvalueforourcustomersisourcompany'sconcept.Welcometoenquiryfromus,Let's our sales team make you more great in this field.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
4. Why chosse us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.

Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

5. Contact us
Atten: Coco. Tian
Tel: 0086-17771878326
www.veldlion.com
