--------------------------------------------------------------Our company is professional manufacturer in truck area, guarantee all goods Brand-New and high-quality.
»I.Product Describution:
Manufacturer:Hubei Veldlion Machinery Co.,Ltd.

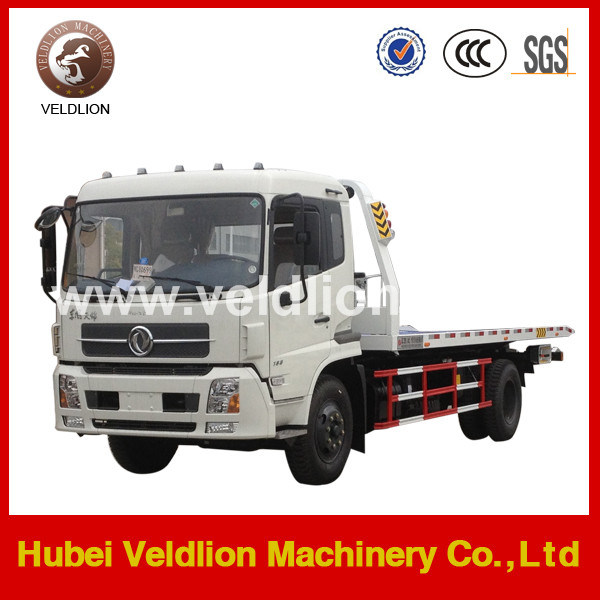

Wrecker truck,full name is road wrecker truck, is also called trailer truck or road rescue wrecker truck or towing truck.
It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc.
Wrecker truck basically is refitted fromthe loading goods second class chassis, according to the wrecker truck's structure, it can be divided into tow, loading, lifting, rescue (single arm type and arms type) wrecker truck.
»II.Wrecker Truck Specification :
Vehicle Description |
Vehicle model | Wrecker Tow Truck | Overall dimensions (mm) | 9500*2480*2800 |
GVW (kg) | Appro×15995 | Fact loading capacity (kg) | 8170 |
Mass in working order (kg) | Appro×7630 | Max. Speed (km/h) | 95 |
Chassis Description |
Chassis Model | DFA1161LJ10D7 |
Cab | Standard cabin with Left hand drive |
Color | Optional |
Allowable person in cab | 2/3 |
Wheel base (mm) | 3815 |
Front/Rear track base (mm) | 1940/1860 |
Front/Rear overhang (mm) | 1245/2845 |
Number of axles | 2 |
Axle | Front axle | 6000 |
Rear axle | 10000 |
Traction system | 4*2 |
Operation control system | Power steering |
Braking system | Full air |
Electric system | 24V |
Transmission | 5speed |
Spring plate | 8/13 |
Tire specification | 9.00R20 16PR |
Tire quantity | 6+1 |
Engine Description |
Engine model | ISD160 43 |
Emission standard | Euro 2 |
Exhaust/output | 4500/118 |
Horse power | 160hp |
Up-parts Description |
Towingrating(kg) | 8170 |
Standard Equipment | Equippedwithhydraulicpssuresystem
Equippedwithhigh-altitudesignallamp.
Driver and passenger side manual controls
Wheel scoops
Fork receivers and frame forks
Safety chains |
Working Condition: | 1,Altitude: 0-4500m
2,Temperature: -350C~+450C
3,Relative humidity: 80%
4,Wind force: ≤8 degree |
Remark:
1. Drive model:4*2,4*4,6*4,6*6,8*4;
2.Chassis Brand :Dongfeng, North Benz, JAC, JMC,FAW, Foton, Sinotruck, etc;
3.Engine:Euro3 and Euro 4emission standard with different horsepower;
4.Left hand drive /Right hand drive with optional.
5.Full or half landing platform optional.
6.One tow one car or One truck tow two car for optional.
»III.Our Advantages
Why choose us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.
Our services
1.We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2.Free consultation forever.When you meet small problems, professional advices can help you to solve them soon.
3.One year free cost warranty.
4.Spare parts forever.When you need spare parts, we can send them to you immediately.
»IV.Company Introduce:
Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is abig manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.
Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit amount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.
» V.Packaging &Shipping
Thick wax polished on products before shipping to protect.Use container, RORO/bulk ship or others as your requirement.We provide transportation insurance to guarantee the new and great condition of products for customers
»VI.Contact us
Atten:Mrs.Real Liu
Mobile:0086-136 5686 6460
www.veldlion.com
YOU ARE ALWAYS WELCOMED TO VISIT OUR FACTORY!
