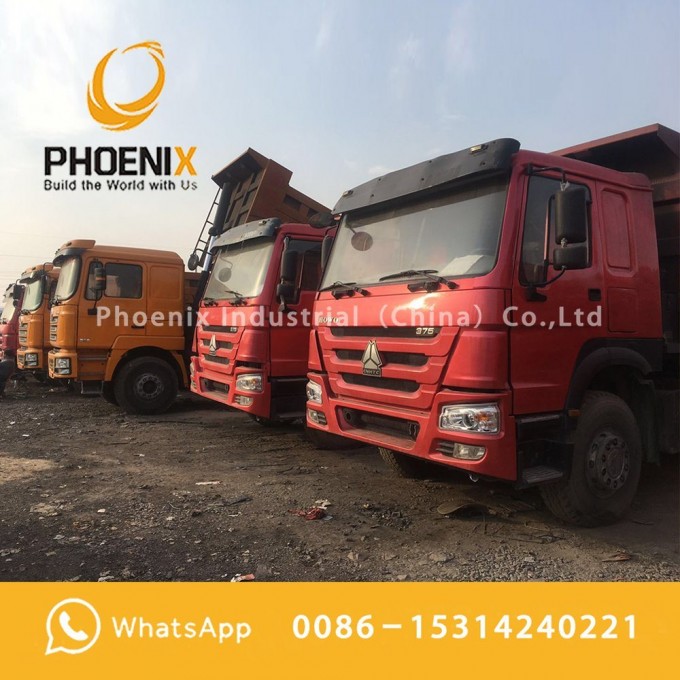

Low Price Used HOWO Dump Trucks Tipper 12 Wheels 375HP 40tons Good Condition for Africa

-Good Condition
-Low Price
-Strong Quality

Low Price Used HOWO Dump Truck Tipper 375HP 8X4 with Excellent condition and Strong Quality.
1. based on STR technology from Austria
2. Cabin:Four point ssuspension HOWO Cabin with spring and air shock absorber, VDO panel
4. Engine:375HP WD615 STR engine (from 290hp -420 hp you can chose )
Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
5. Front axle: HF9 STEYR technology front steering axle
6. Rear axle: HC 16ton STEYR technology double reduction hub reductor driving axle
7. Steering: ZF8098, driver sit at the left hand side
8.Loading capacity: More than 30ton
9.Designed for tough road condition especially for African countries
10. Punctual delivery time
11. Excellent spare parts supply for after-sales service.






Package and Shipping:





Specifications:
Engine

Engine brand	SINOTRUK
Engine model	WD615.47,375hp
Engine type	Diesel 4-stroke direct injection engine, 6-cylinder in-line, water cooled, turbo-charging &intercooling
Displacement	9.726liters
Max. Output	375hp@2200rpm
Bore/Stroke	126/130mm
Compssion ratio	17:1
Specific fuel consumption	≤193g/kW.h

Driver's Cab(One sleeper with A/C)

Type	Forward control cab, hydraulically tiltable by 60o
Construction	Current standard all steel construction
Instrument panel	Clearly visible
Seats	Driver adjustable &passenger fixed
Seat belts	For driver &passenger
Glass	Tempered safety glass
Sun visors	Dual, adjustable
Mirrors	Large, truck type convex
Wind screen wiper	3 arm wind screen wiper system with 3speeds
Entertainment system	FM/AM/SW, 4band radio with cassette player, two speaker and antenna
Steering wheel	Adjustable steering wheel
Horn	Air horn
Panel	LCD Panel with LED light

Cooling system

Medium	Water
Radiator	heavy duty type
Cooling fan	Visco static fan tropical type
Thermostat	Opening at 70-80ºC
Warning device	Audible &visual

Air in-take system

Air cleaner type	Heavy duty type
Pre filter	Cyclone

Clutch

Type	Φ430plate dry diaphragm spring clutch, hydraulically power assisted

Exhaust system

Capable of maintaining the sound level as low as possible.

Transmission

	Type								Heavy duty, manual fuller type
	Model								HW19710
	No of speeds								10 forward +2 reverse
Model		Torque(Nm)	Gear Ratios													Oiling (L)
			1	2	3	4	5	6		7	8	9	10	R1	R2
HW19710		1900	14.28	10.62	7.87	5.88	4.38	3.27		2.43	1.80	1.34	1.00	13.91	3.18	12

Front Axle

Type	HF 9ton front axle with drum brake
Capacity	9000kg

Rear Axle

Type	HC16 double reduction driving axle, inter-wheel differential and differential lock
Capacity	16T

Chassis

frame	Heavy duty, reinforced sub frame, 300mmx80mmx8mm (inner: 280mmx70mmx7mm)
Front suspension	Semi-elliptic leaf spring with shock absorbers,1500mm
Rear suspension	Semi-elliptic leaf spring with shock absorbers and stabilizer,1739mm

Bumper

Installed heavy duty front and rear steel bumpers

Steering

Location	Left hand
Model	ZF 8098(Made in Germany)hydraulic steering with power assistance
Variable ratios	22.2-26.2, 17.0-20.0
Max. pssure	170+10 bar
Max. output torque	7618 Nm
Weight	42 kg

Brake System

Service brake	Dual circuit compssed air brake.
Parking brake	Spring energy, compssed air operating on rear wheels
Auxiliary brake	Latest version

Wheels &Tyres

Wheels	Single front and dual rear
Tyres	12.00R20
Quantity	13

Air Supply system

Warning device	Audible &visual
Air line	Heavy duty steel pipes

Electrical System

Operating Voltage	24V, Negative grounded; Starter 24V, 7.5KW
Batterytype	2x12V, 165Ah/180Ah
Alternator	28V, 1500W
Cigar	Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp

Dimensions

Wheel base	1800mm+4800mm+1350
Overall length	11445mm
Overall width	2496mm
Overall height	3190mm

Cargo body

Internal Size	8100x2300x1500mm
Thickness of body steel	Side 6mm &bottom 8mm
Tipping type	Front lift
Front type hydraulic system (HYVA hydraulic cylinder)
