Product Des

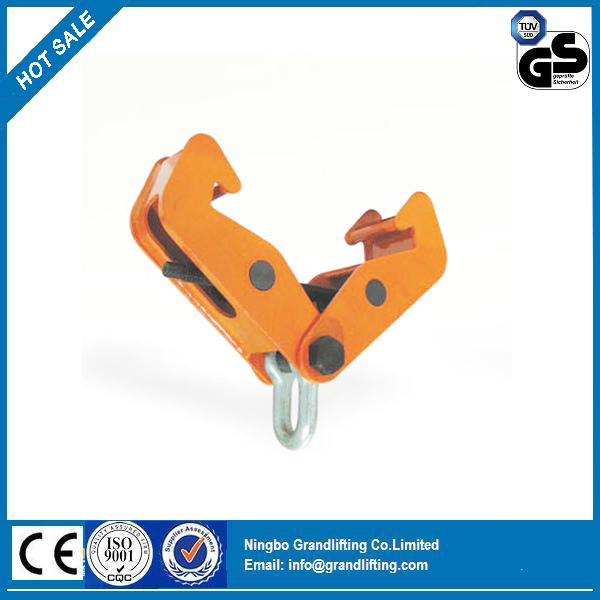

criptionProduct's Introduction:1.Beam Clamp is a equipment that can quick form hanger or co
nnecting point in I-beam monorail.2.The beam clamp should be formed a complete set with chain hoist or other lifting machines.3.The beam clamp was installed on the bottom flange of I-beam.4.The beam clamp is adopt left and right screw thread co
nstruction for leading-screw, clamping is quick in operation.5.The scops of adjustments is wide,adjustment is very convenient.6.Main parts of support strength are made by alloy steel.Beam clamp features:1. Robust all steel co
nstruction with safety operation.2. Compact size with light weight.3. Easy to install with minimum headroom.4. Super-quick adjustment to any girder width in range.5. Beam clamp with small shackle is available upon request.Precaution:1.Over loading is strictly forbidden.2.If the beam clamp is used as lifting machines, while lifting the load, passing or working under a lifting load is strictly.3.The direction of lifting or towing load must be perpendicular with ba
se I-beam.4.Leading screw fastener screw etc. should be reguiarly.
| Item No. | ZHBC-S-1T | ZHBC-S-2T | ZHBC-S-3T | ZHBC-S-5T |
| Capacity | (kg) | 1000 | 2000 | 3000 | 5000 |
| I-beam width range | (mm) | 75-200 | 100-250 | 150-300 | 150-300 |
| Dimensions(mm) | Amax | 240 | 280 | 330 | 330 |
| B | 320 | 360 | 430 | 450 |
| C | 80 | 90 | 117 | 127 |
| H | 230 | 300 | 360 | 390 |
| D | 24 | 31 | 39 | 45 |
| G | 45 | 63 | 75 | 96 |
| φd | 14 | 20 | 24 | 30 |
| t | 17 | 20 | 25 | 35 |
| δ | 4.5 | 6 | 10 | 12 |
