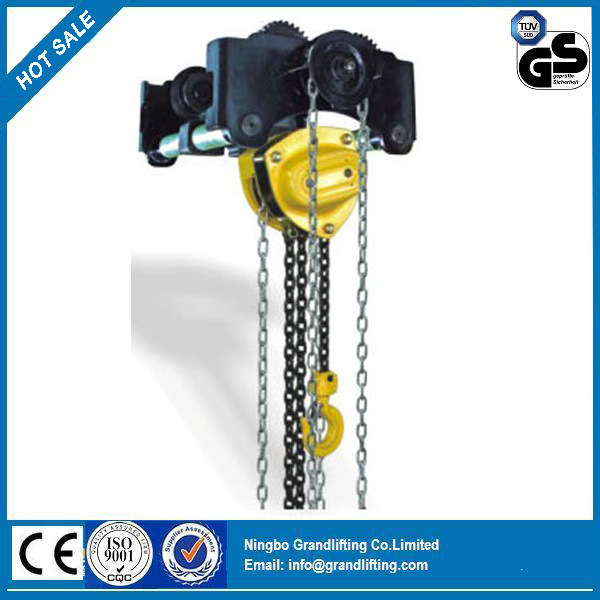

| Item No.(I-beam:nomal) | ZHTH-G-0.5T | ZHTH-G-1T | ZHTH-G-1.5T | ZHTH-G-2T | ZHTH-G-3T | ZHTH-G-5T | ZHTH-G-7.5T | ZHTH-G-10T | ZHTH-G-15T | ZHTH-G-20T | ||
| Item No.(I-beam:long) | ZHTH-G-0.5T-L | ZHTH-G-1T-L | ZHTH-G-1.5T-L | ZHTH-G-2T-L | ZHTH-G-3T-L | ZHTH-G-5T-L | ZHTH-G-7.5T-L | ZHTH-G-10T-L | ZHTH-G-15T-L | ZHTH-G-20T-L | ||
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | ||
| Running test load(kn) | 7.35 | 14.71 | 22.06 | 29.42 | 44.13 | 61.29 | 98.06 | 122.58 | 196.12 | 196.12 | ||
| Min.radius of curve(m) | 0.85 | 1 | 1.1 | 1.1 | 1.3 | 1.4 | 2 | 2 | 3.5 | 3.5 | ||
| Chain pull to lift full load(Kn) | 25 | 50 | 70 | 90 | 95 | 140 | 200 | 240 | 240 | 240 | ||
| Dimension(mm) | A | a | 272 | 334 | 337 | 343 | 357 | 373 | 416 | 423 | 498 | 498 |
| b | 322 | 436 | 439 | 445 | 459 | 475 | 518 | 525 | 600 | 600 | ||
| B | 258 | 292 | 319 | 358 | 434 | 448 | 628 | 636 | 757 | 887 | ||
| C min | 385 | 451 | 489 | 551 | 629 | 758 | 916 | 965 | 1020 | 1200 | ||
| H min | 299 | 331 | 383 | 411 | 460.5 | 585 | 760 | 780 | 910 | 965 | ||
| S | 30 | 35 | 38 | 38 | 40 | 42 | 45 | 45 | 56 | 58 | ||
| Z | 7.5 | 10.5 | 10.5 | 12 | 14 | 15 | / | / | / | / | ||
| F | 2-3.5 | 2-3.5 | ||||||||||
| I-Beam width range(mm) | M | a | 50-152 | 64-203 | 74-203 | 88-203 | 100-203 | 114-203 | 124-203 | 124-203 | 136-203 | 136-203 |
| b | 50-203 | 64-305 | 74-305 | 88-305 | 100-305 | 114-305 | 124-305 | 124-305 | 136-305 | 136-305 | ||
| Net weight(kg) | a | 19 | 27.3 | 37 | 49.5 | 65 | 90.5 | 136 | 162 | 294 | 353 | |
| b | 21 | 29.3 | 39 | 51.5 | 69 | 95.5 | 142 | 170 | 302 | 361 | ||
